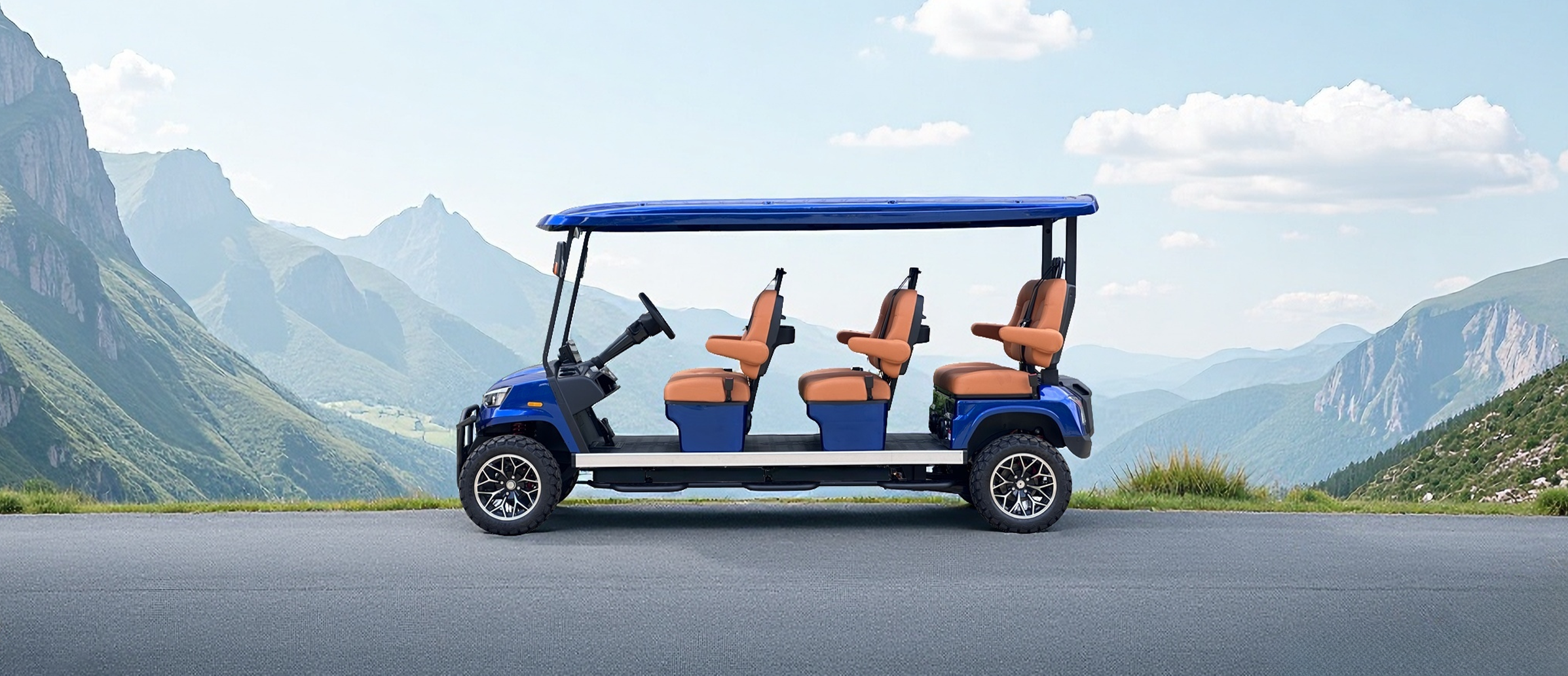

Falcon H6

Color Options

Choose the color you like

Electric System

Controller	72V 400A controller
Battery	72V 105AH Lithium
Motor	6.3KW motor
Charger	On board charger 72V 20A
DC converter	72V/12V-500W

Body

Roof	PP injection molded
Seat cushions	Ergonomics, leather fabric
Body	Injection molded
Dashboard	Injection molded, with LCD media player
Steering system	Self Compensating" Rack & Pinion" Steering
Brake system	Front and rear disc brake hydraulic brakes with EM brake
Front suspension	Double A arm independent suspension+ spiral spring+ cylindrical hydraulic shock absorber
Rear suspension	Cast aluminum integral rear axle + trailing arm suspension + spring damping, ratio 16:1
Tire	23/10-14
Side mirrors	Manual adjustable, foldable, with LED turn indicator

Specifications

Curb weight	1433 lb (650 kg)
Overall dimensions	153×55.7×79.5 in (388.5×141.5×202 cm)
Front wheel Tread	42.5 in (108 cm)
Ground clearance	5.7 in (14.5 cm)
Max speed	25 mph (40 km/h)
travel distance	> 35 mi (> 56 km)
Loading capacity	992 lb (450 kg)
Wheel base	100.8 in (256 cm)
Rear wheel Tread	40.1 in (102 cm)
minimum turning radius	≤ 11.5 ft (3.5 m)
max. climbing ability (loaded)	≤ 20%
Brake distance	< 26.2 ft (8 m)

Performance

Advanced Electric Powertrain Delivers Exhilarating Performance

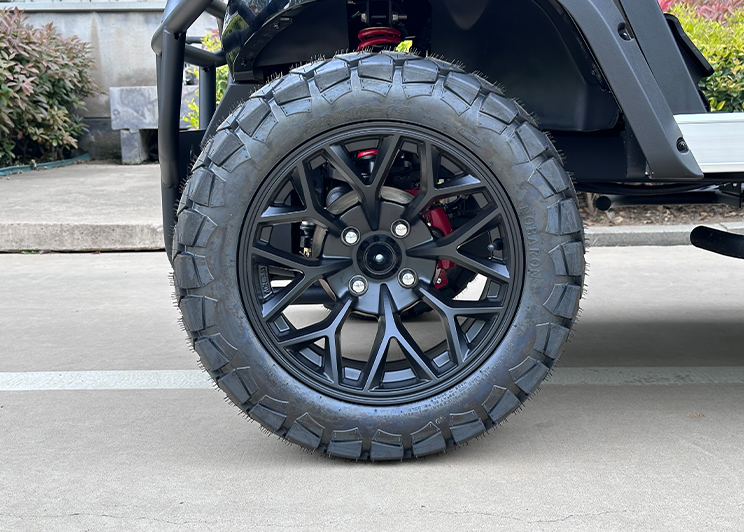

TIRE

Our 14" alloy rims blend style and functionality. Designed with water dispersion channels, they enhancetraction, cornering and braking, while the flat tread minimizes grass damage. These lightweight, low-profile 4-ply tires offer superior performance over traditional all-terrain tires, thanks to their compactdesign and reduced footprint.

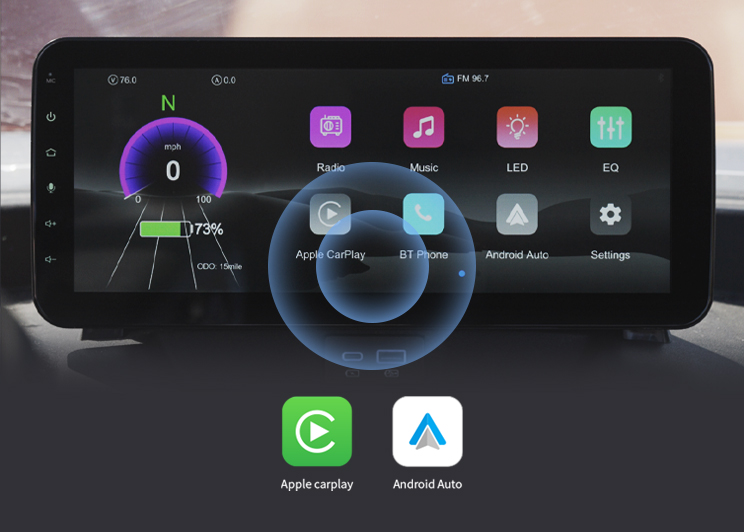

TOUCHSCREEN

This 10.1-inch touchscreen enhances the driving experience with seamless Apple CarPlay and Android Autointegration, allowing easy access to music, navigation, and calls. it also serves as the central hub forcontrolling various features like Bluetooth, radio, speedometer, backup camera, and app connections,offering both convenience and entertainment on the go.

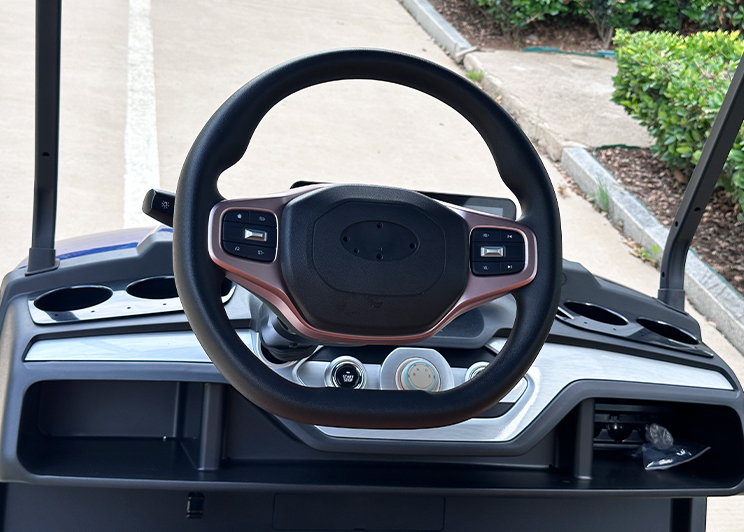

CENTRAL CONTROL

Forimproved control, safety and comfort for drivers of all body types. The simple knob enables fastadjustments and provides the optimal distance from the steering wheel.

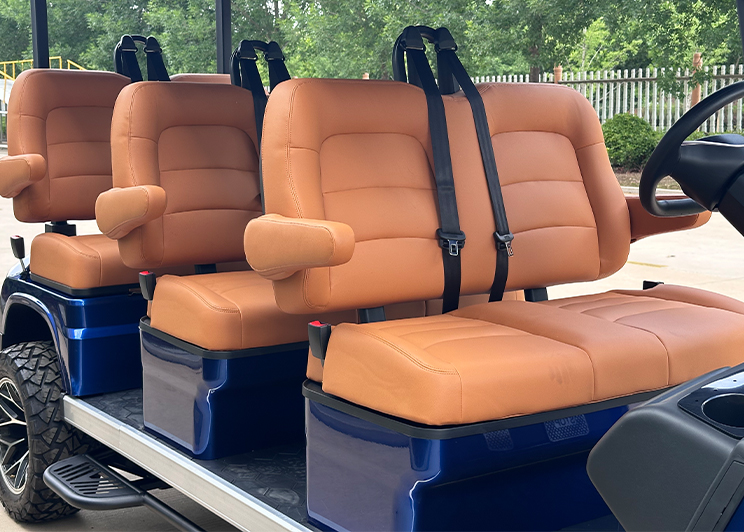

SEAT

The two-tone leather seats offer exceptional elegance and comfort, with premium materials providing asoft, luxurious ride. For enhanced passenger safety, they are equipped with secure three-point seat belts.Additionally, the 90-degree adjustable ergonomic armrest offers personalized support, enhancing overallcomfort and ride quality.

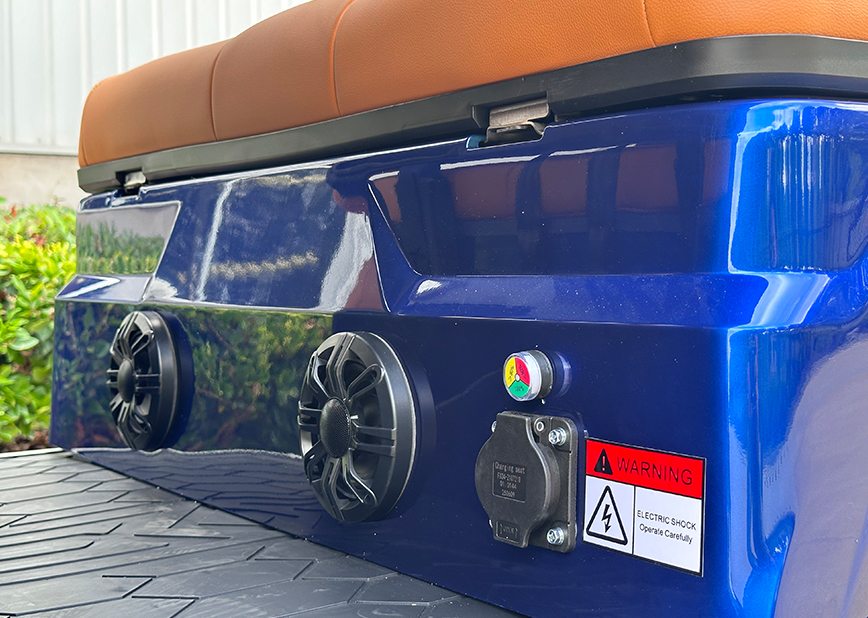

ILLUMINATED SPEAKERS

The speaker, two placed under the seat and two on the roof, combinesvibrant lights with exceptionalsound quality. Designed todeliver dynamic audio andcreate visually stunningambient lighting, it elevatesyour experience with bothimpressive sound and acaptivating atmosphere.

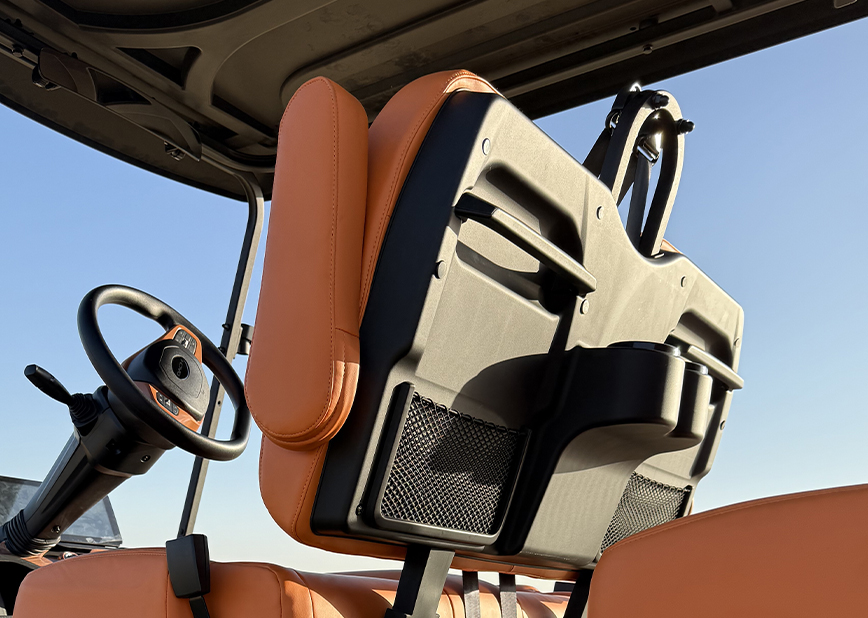

SEAT BACK COVER ASSEMBLY

The multi-function seat backenhances convenience with anintegrated handrail for support,a cup holder for drinks, and astorage pocket for essentials.The USB charging ports keepyour devices powered while onthe move. lt's the ideal additionto your vehicle for a moreorganized and enjoyable ride.

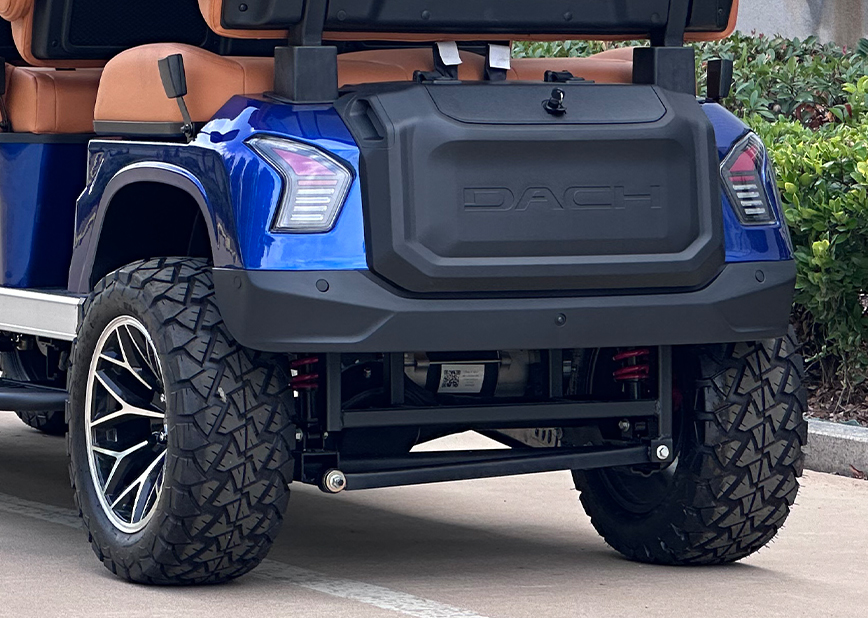

STORAGE TRUNK

The rear storage trunk is idealfor organizing your belongings.With ample space, it easilyholds outdoor gear, clothes, andother essentials. Storing andaccessing items is simple,ensuring convenient transportof everything you need.

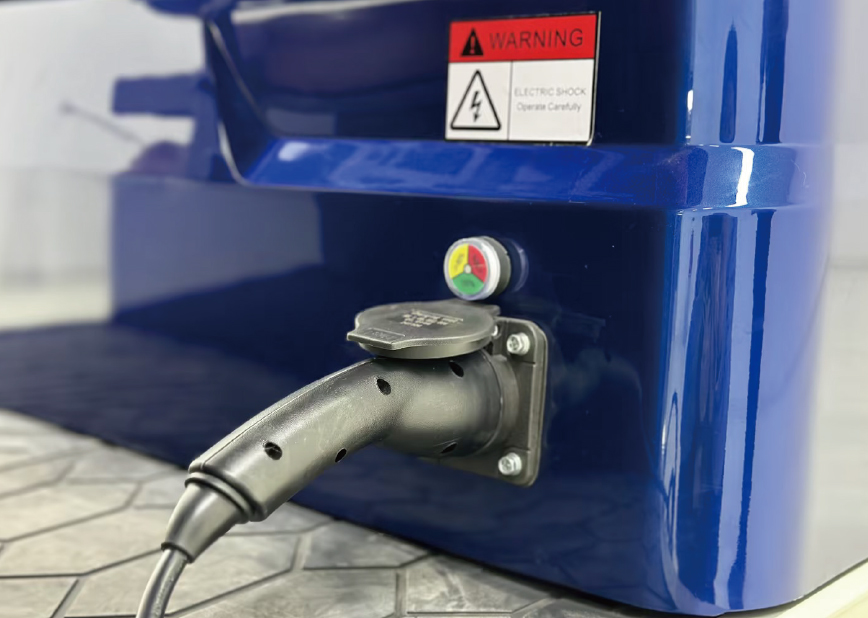

VEHICLE CHARGING POWER SUPPLY
