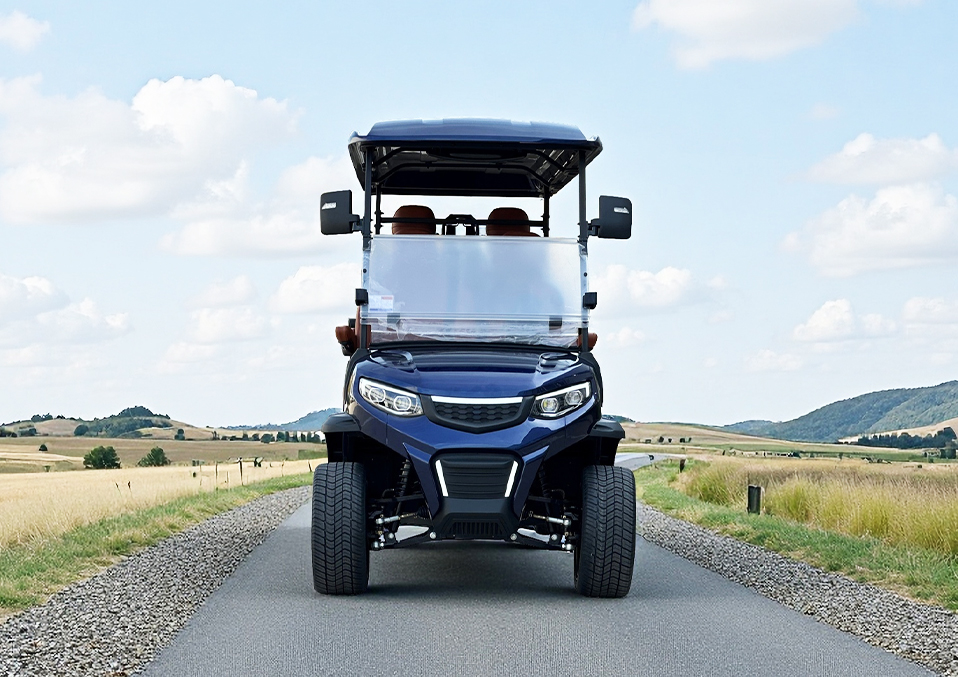

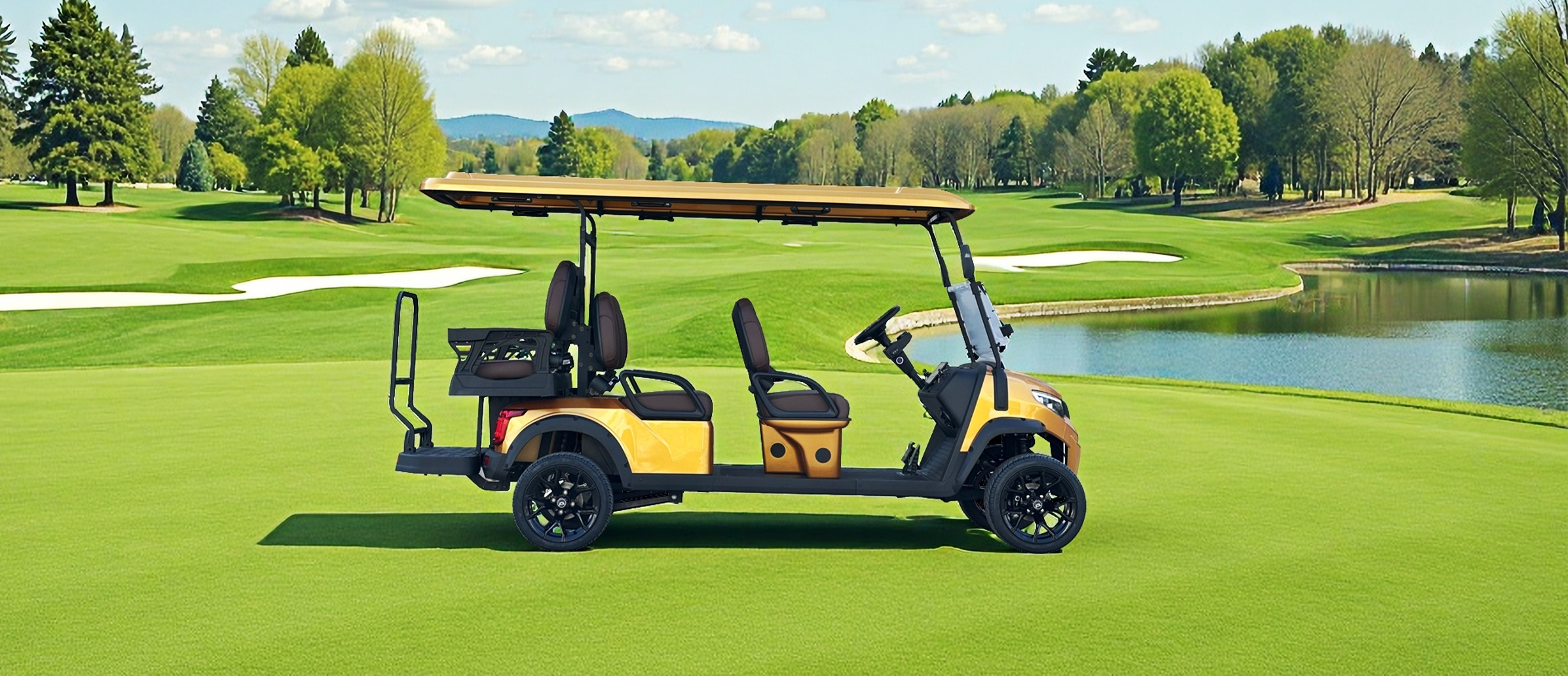

MX G4+2

Color Options

Choose the color you like

Technical Parameter

Quality of service (kg)	660	load (kg)	550
Overall dimension (mm)	3610×1270×1950	wheelbase (mm)	2430
Front track (mm)	1000	Rear track (mm)	1020
Minimum ground clearance (mm)	120	Minimum turning radius(m)	≤4.5m
Maximum operating speed(km/h)	≤25	Maximum gradient (%)	≤25%
range (km)	60—80km	Braking distance (m)	≤6m

System Configuration

Dynamic system	Motor:	6.3KW	Controller:	AC72V 400A
	Battery:	Maintenance-free battery 4-EVF-150	Charger:	NAVITAS CONTROLLER
	Accelerator:	Integrated input DC72V	DC Converter:	DC72V to 12V300W isolation model
	Accelerator:	Output 0-4.65V	DC Converter:	DC72V to 12V300W isolation model
Brake transmission system	Transmission mode:		Transmission:
	Front Axle:		Rear Axle:	12.31∶1
	Service brake:	Four wheel hydraulic disc brake	Parking brake:	Electromagnetic brake
Steering system	Front suspension	Double fork arm independent suspension	Rear suspension	Towing arm integral bridge non-independent suspension
	Tires:	Choose between 205/50-10, 215/35-12, and 225/50-14	Rim:	10 inch, 12 inch, 14 inch aluminum alloy rim three options
	Steering gear:		Steering wheel:	Foamed black or carbon fiber
Electrical system	Lights:	All-system LED	Meter:	10.4 "multimedia rotating screen + speed meter

Body

body	Body:	Injection molding	Windshield glass	Transparent plexiglass
	Cargo Box:		Armrest:
	Door:
Body accessories	Side-view mirror	Standard configuration	Endoscope:	Standard configuration
	Carpet:	assorting	Seats:	Standard configuration
	Seat belt:	assorting	Scram switch	assorting
other	Sun shade:	assorting	Rain curtain:	assorting
other	Audio:	2 speakers as standard

Performance

Advanced Electric Powertrain Delivers Exhilarating Performance

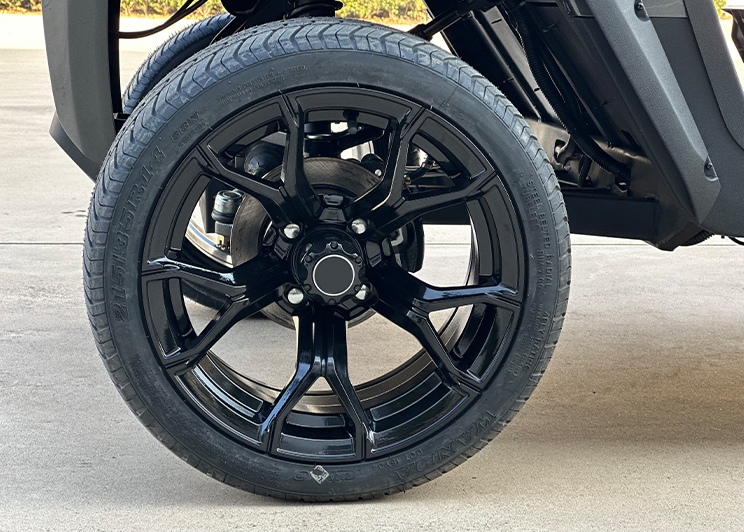

TIRE

Our 14" alloy rims blend style and functionality. Designed with water dispersion channels, they enhancetraction, cornering and braking, while the flat tread minimizes grass damage. These lightweight, low-profile 4-ply tires offer superior performance over traditional all-terrain tires, thanks to their compactdesign and reduced footprint.

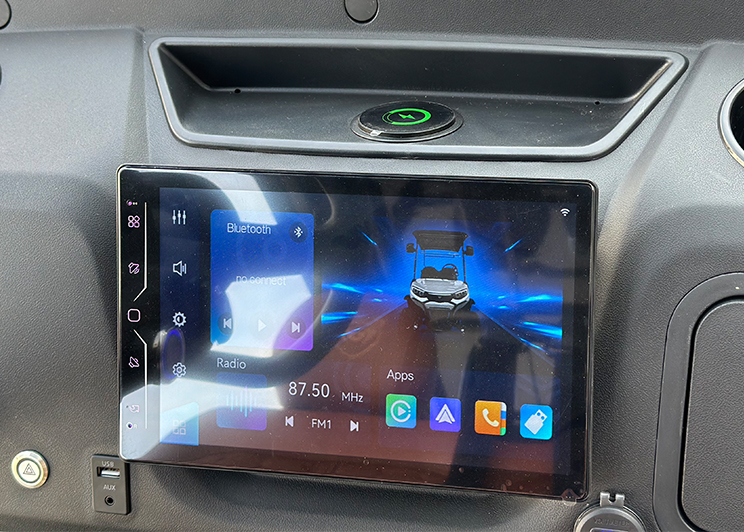

TOUCHSCREEN

This 10.1-inch touchscreen enhances the driving experience with seamless Apple CarPlay and Android Autointegration, allowing easy access to music, navigation, and calls. it also serves as the central hub forcontrolling various features like Bluetooth, radio, speedometer, backup camera, and app connections,offering both convenience and entertainment on the go.

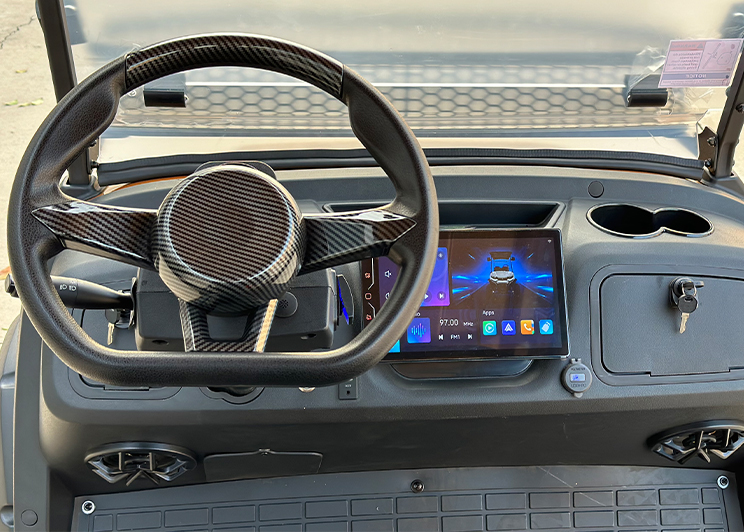

CENTRAL CONTROL

Forimproved control, safety and comfort for drivers of all body types. The simple knob enables fastadjustments and provides the optimal distance from the steering wheel.

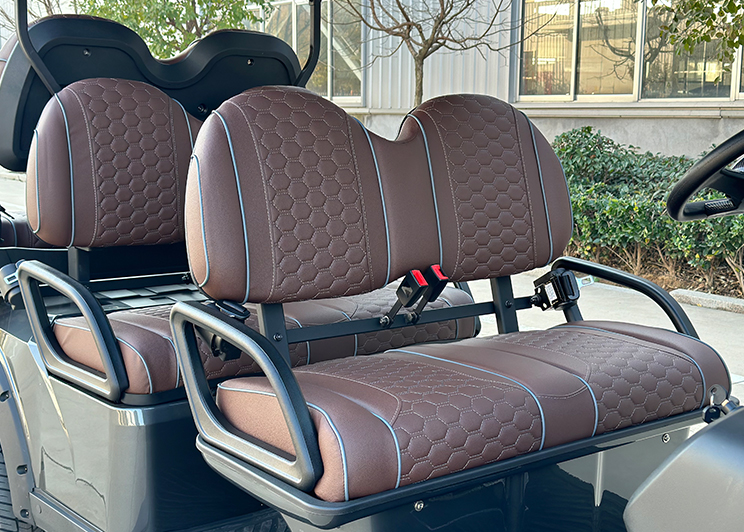

SEAT

The two-tone leather seats offer exceptional elegance and comfort, with premium materials providing asoft, luxurious ride. For enhanced passenger safety, they are equipped with secure three-point seat belts.Additionally, the 90-degree adjustable ergonomic armrest offers personalized support, enhancing overallcomfort and ride quality.

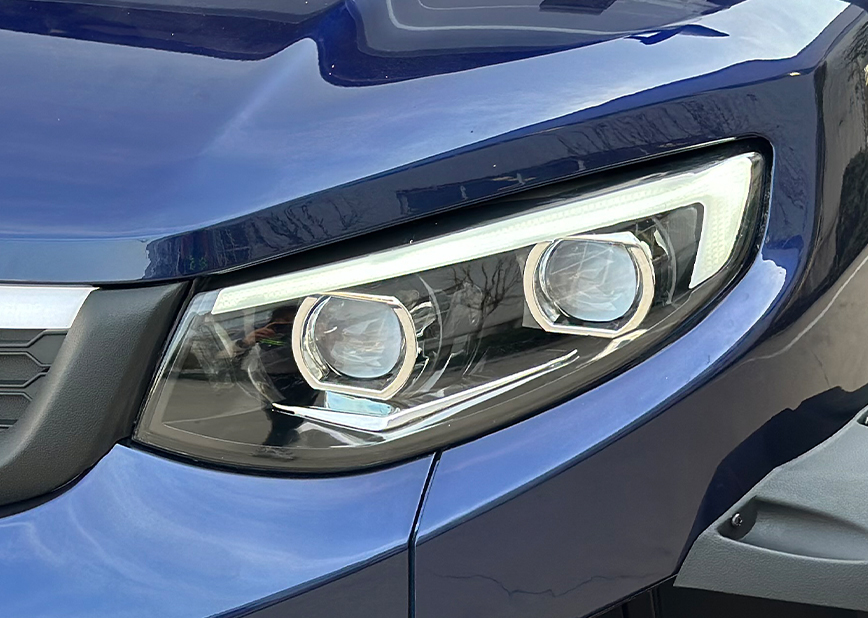

LED LIGHT

Our personal transportation vehicles come standard with LED lights. Our lights are more powerful with less drain on your batteries, and deliver a 2-3 times wider field of vision than our competitors, so you can enjoy the ride worry-free, even after the sun goes down.

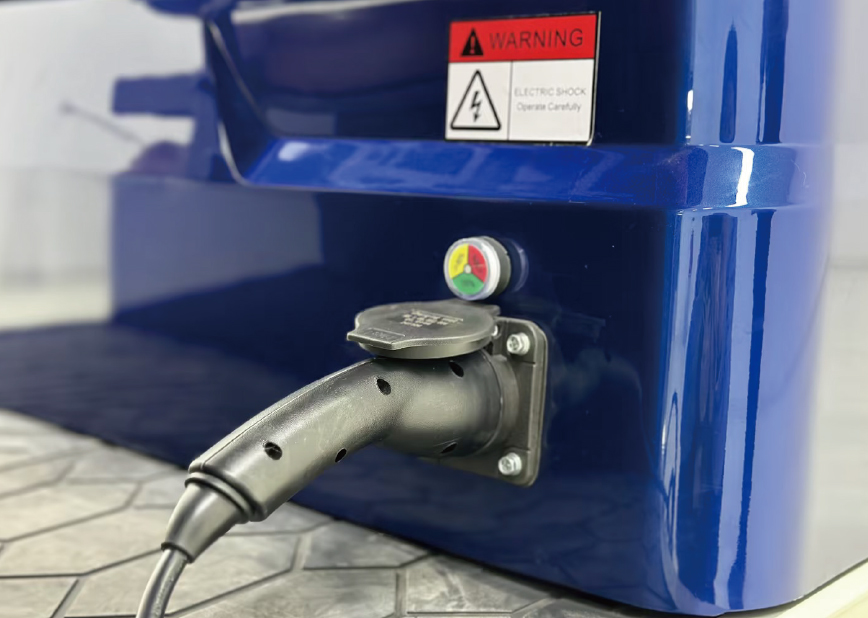

VEHICLE CHARGING POWER SUPPLY

The vehicle's charging system is compatible with AC power from 110V - 140V outlets, allowing connection to common household or public power sources. For efficient charging, the power supply must output at least 16A. This high - amperage ensures the battery charges quickly, providing enough current to get the vehicle back in operation fast. The setup offers power source versatility and a reliable, fast charging process.

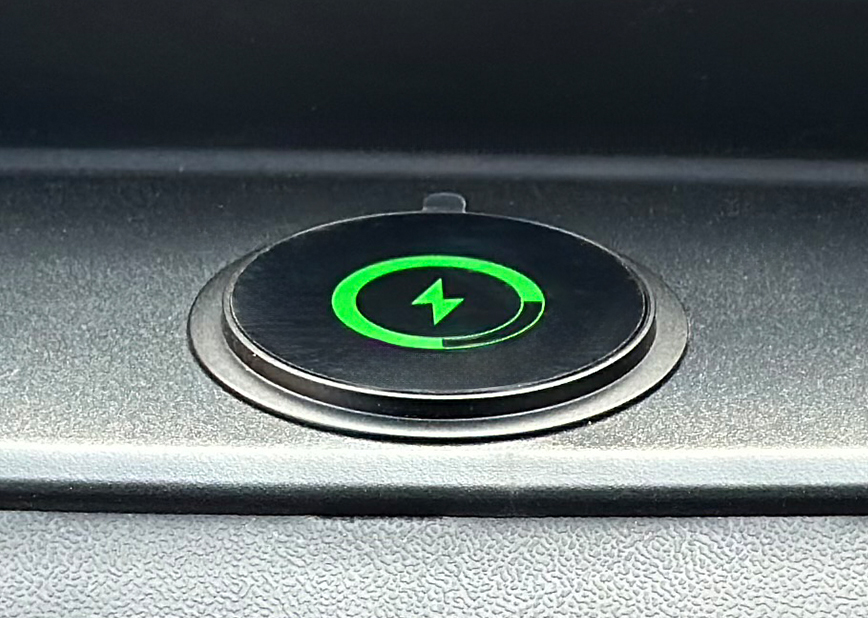

WIRELESS CHARGING

The most prominent advantage is the convenience it offers. With wireless charging, drivers and passengers no longer need to fumble with charging cables. They can simply place their compatible devices on the wireless charging pad inside the car, which is usually located in a convenient spot such as the center console or the dashboard. This seamless process allows for immediate charging without the need for plug - in operations, making it especially useful when getting in and out of the vehicle in a hurry.

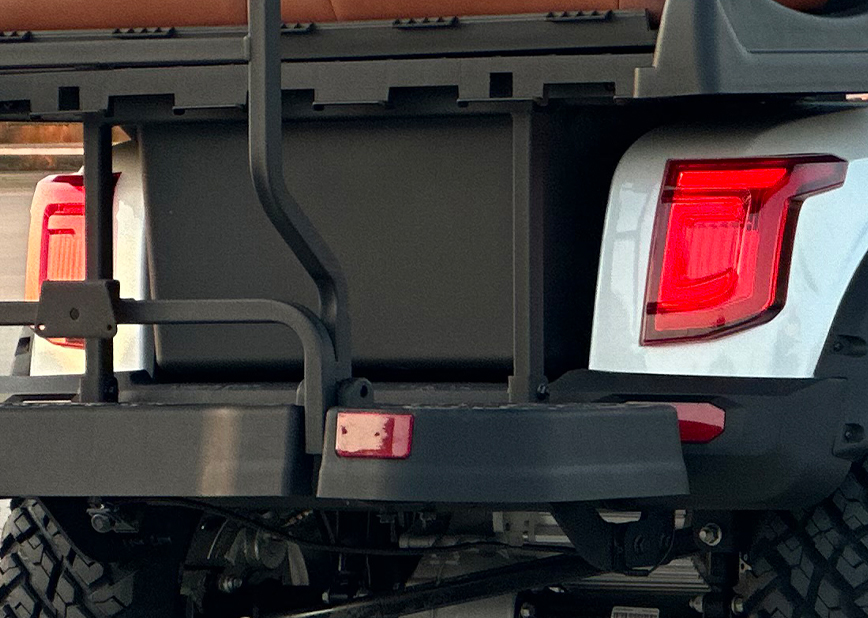

TAIL LIGHT
