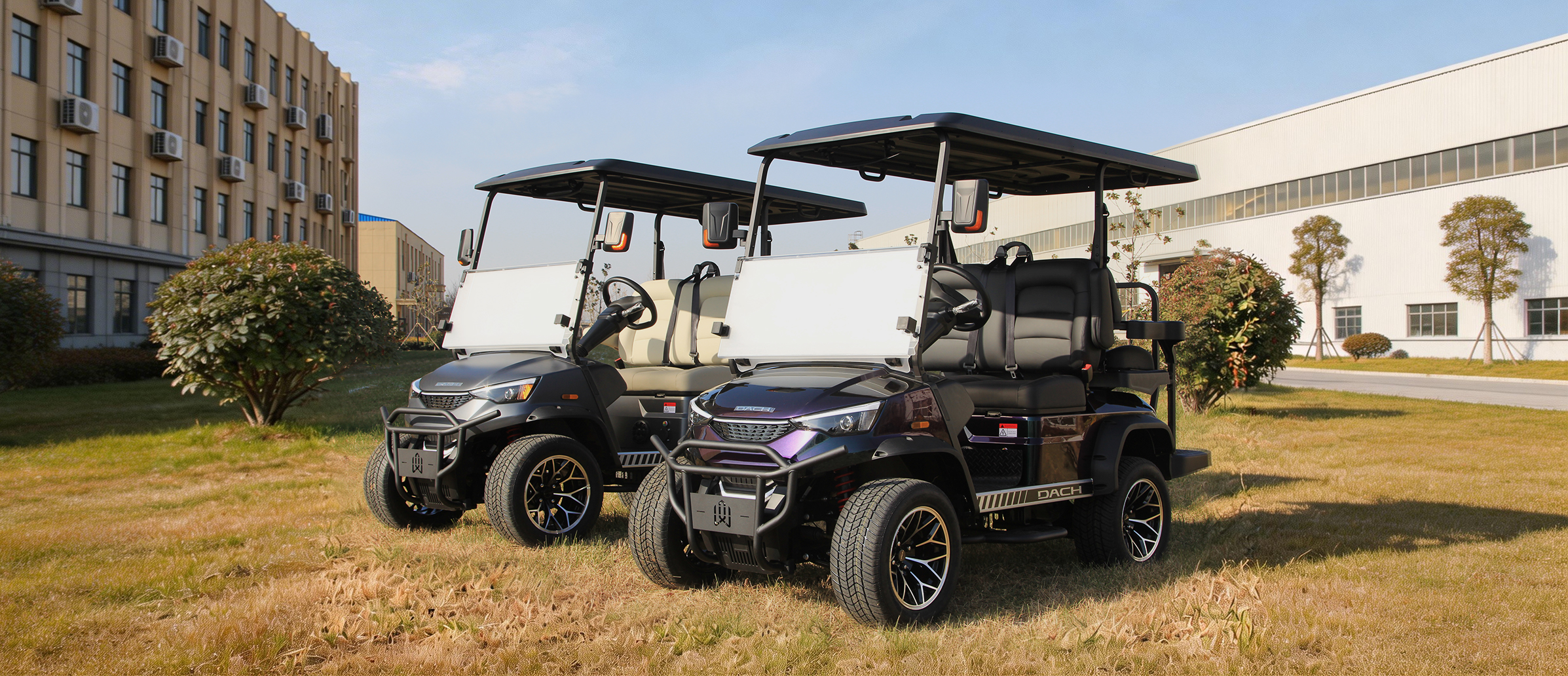

DC-G-F2+2

Color Options

Choose the color you like

Electric System

Battery	72 V 105 Ah LIFeP04 7.7 kWh
Controller	72V DC 350A
Motor	72V DC 6.3 kW AC Motor
Onboard Charger	72v 1.5 kW

Body

Overall Dimensions (L/W/H)	114.17 x 55.12 x79.92 in
Wheelbase	67.32 in
Maximum Load Capacity	758.39lb
Accelerator	Hall Accelerator 0-5V
Curb Weight	1322 lb
Passenger Capacity	4
Frame Structure	Low carbon steel Stamped and Welded Frame
Driving Range	≥ 55.9 mlles at constant 19 mph
Maximum factory speed	19 mph
Acceleration	0-19 mph in 10 seconds
Front Track Width	43.39 in
Rear Track Width	41.65 in
Minimum Turning Radius	11.5 ft
Maximum Gradeability	30%
Tire	225/50 R14 (14 inch Aluminum Alloy Rim)

Specifications

Minimum Ground Clearance	7.2 in
Braking Distance	13 ft
Windshield	Hinged Fold Down Laminated Glass
Instrument Display	12.3 inch Multimedia Touchscreen Integrated Instrument Panel with Battery Status Voltage, Current Speed, Mileage, Fault Codes
Plastic Parts For The Entire Vehicle	PP&PP+Glass Fiber&ABS&PC+ABS&TPE&Rubber&PP+EPDM-T2
Roof Plastic Parts	PP

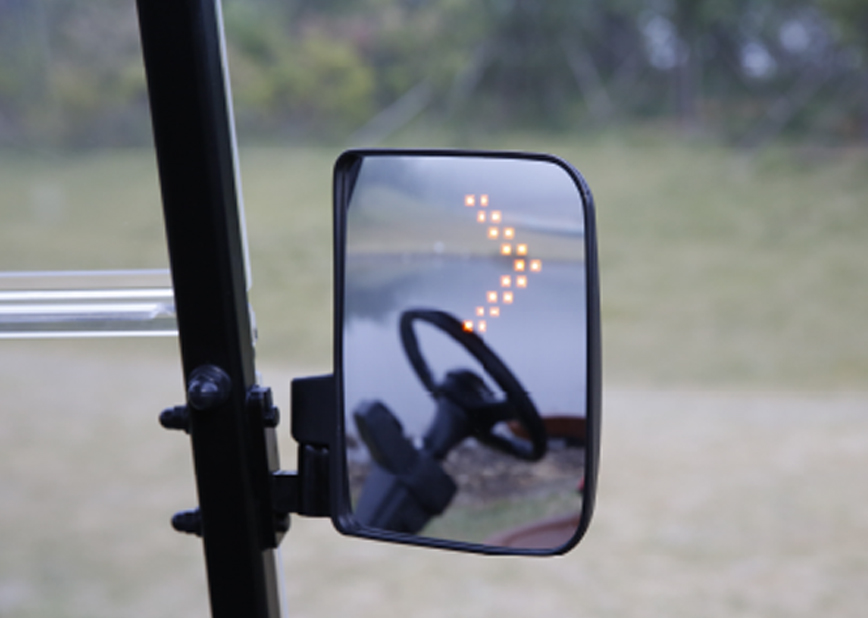

Rearview Mirror	Left and right rearview mirrors (with turn signal lights), interior rearview mirrors
Suspension System	Front Double A arm Independent suspension Rear Integrated Rear Axle with Coil Springs
Steering System	Self Compensating Rack and Pinion Steering Adjustable Steering Column Waterproof Multifunction Steering Wheel
Braking system	Front and Rear Hydraulic Disc Brakes Electronic Parking Brake
Lighting System	Front LED headlights Position lights Turn Signal Lights Brake Lights License Plate Lights
Steering Column	Turn Signal Switch with Self Canceling Function Position Light Switch High Beam and Low Beam Switch
Drive Mode	Rear-wheel Drive
Rear Axle Gear Ratio	12.3:1
Starting Mode	NFC Card Start&Phone NFC&Phone Keyless Push-Button Start
Gearshift Switch	R-N-D-E
Sound Equipment	4-inch seat bucket speaker*2
Driver Assistance Function	Cruise Control
Mobile Phone Charging	Wireless charging&USB charging&Type-C charging
Music Playing	Bluetooth connection&USB File reading

Performance

Advanced Electric Powertrain Delivers Exhilarating Performance

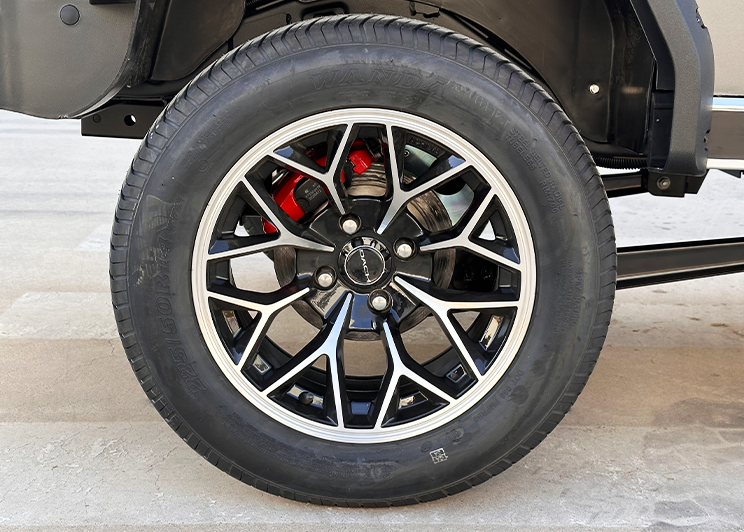

TIRE

Our 14" alloy rims blend style and functionality. Designed with water dispersion channels, they enhancetraction, cornering and braking, while the flat tread minimizes grass damage. These lightweight, low-profile 4-ply tires offer superior performance over traditional all-terrain tires, thanks to their compactdesign and reduced footprint.

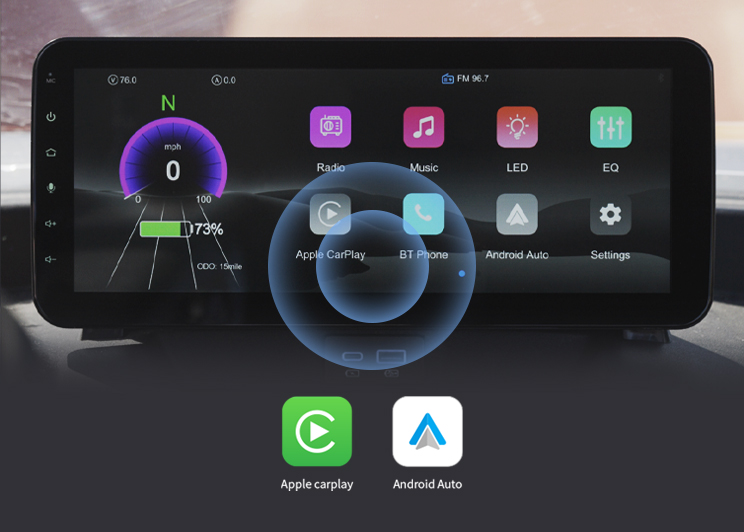

TOUCHSCREEN

This 12.3-inch touchscreen enhances the driving experience with seamless Apple CarPlay and Android Autointegration, allowing easy access to music, navigation, and calls. it also serves as the central hub forcontrolling various features like Bluetooth, radio, speedometer, backup camera, and app connections,offering both convenience and entertainment on the go.

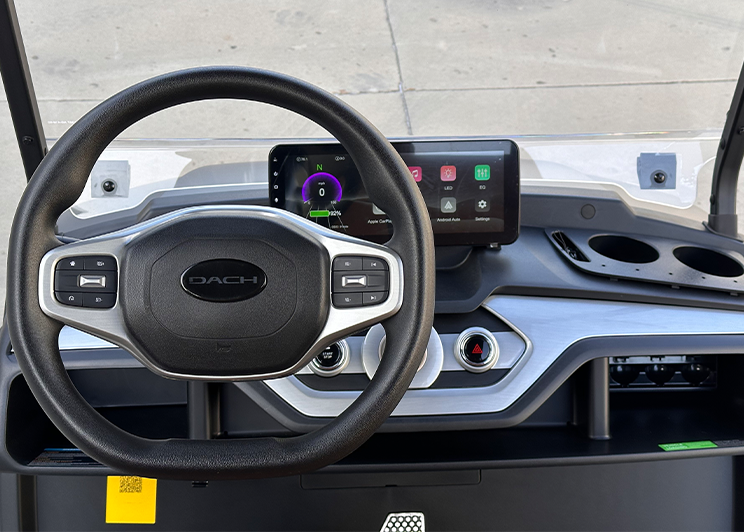

CENTRAL CONTROL

Forimproved control, safety and comfort for drivers of all body types. The simple knob enables fastadjustments and provides the optimal distance from the steering wheel.

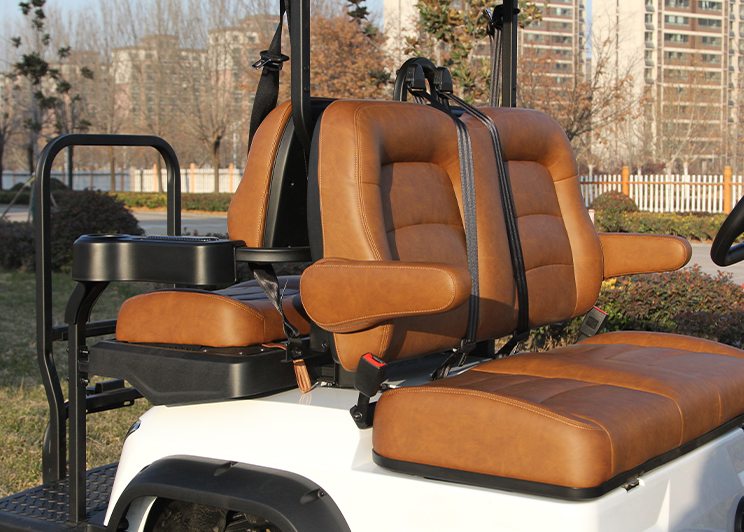

SEAT

The two-tone leather seats offer exceptional elegance and comfort, with premium materials providing asoft, luxurious ride. For enhanced passenger safety, they are equipped with secure three-point seat belts.Additionally, the 90-degree adjustable ergonomic armrest offers personalized support, enhancing overallcomfort and ride quality.

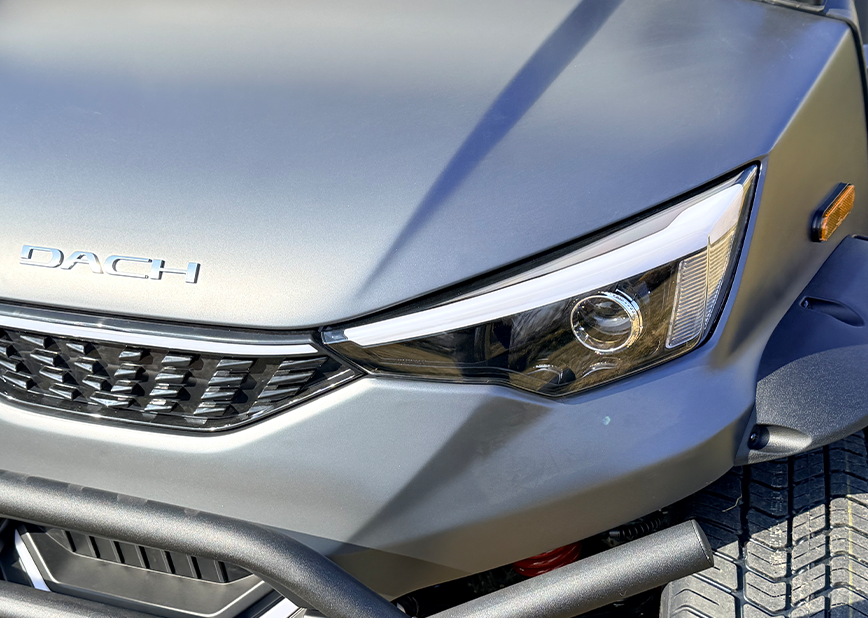

LED LIGHT

Our personal transportation vehicles come standard with LED lights. Our lights are more powerful with less drain on your batteries, and deliver a 2-3 times wider field of vision than our competitors, so you can enjoy the ride worry-free, even after the sun goes down.

Mirror Adjustment Precautions

Adjust each mirror manually before turning the key to start the vehicle.

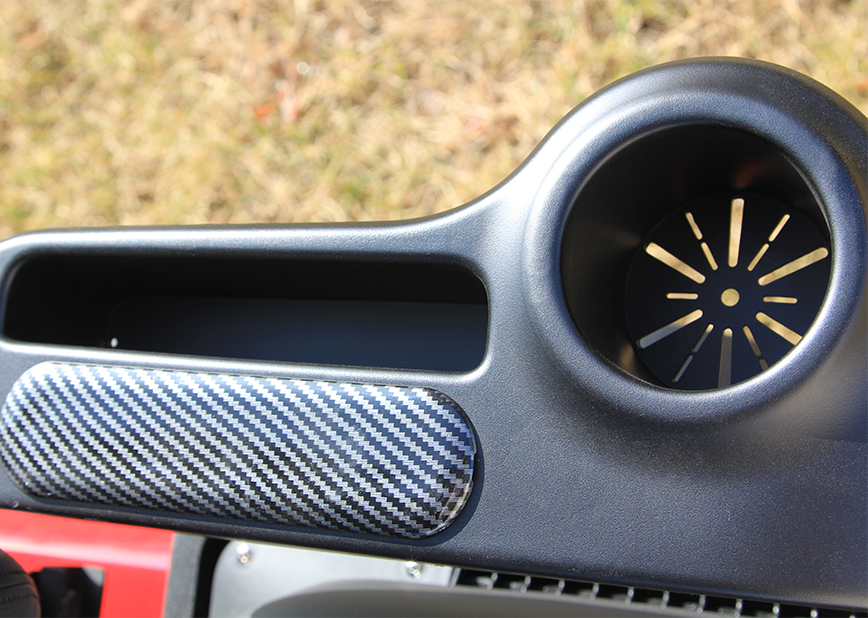

CUPHOLDER

Everyone needs a cupholder even if you're bringing a single water bottle. This cupholder in your golf cart reduces the risk of spills and makes it easier to transport soda, beer and other drinks.

You can also store small accessories like USB cords in the compartments.

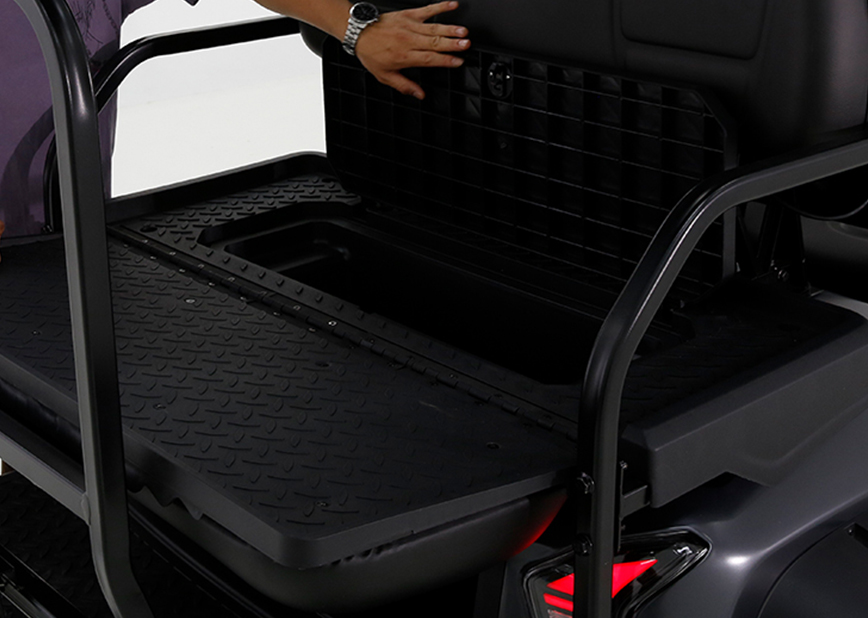

STORAGE COMPARTMENT

With busy schedules that require us to constantly be on-the-go, we inevitably start to stockpile things in our vehicle. The storage compartment, made of high quality materials, durable and practical. What's more, the storage compartment, increasing storage space, is a built-in box under the rear seats. It makes it harder to lose things if you prone to misplacing personal items
