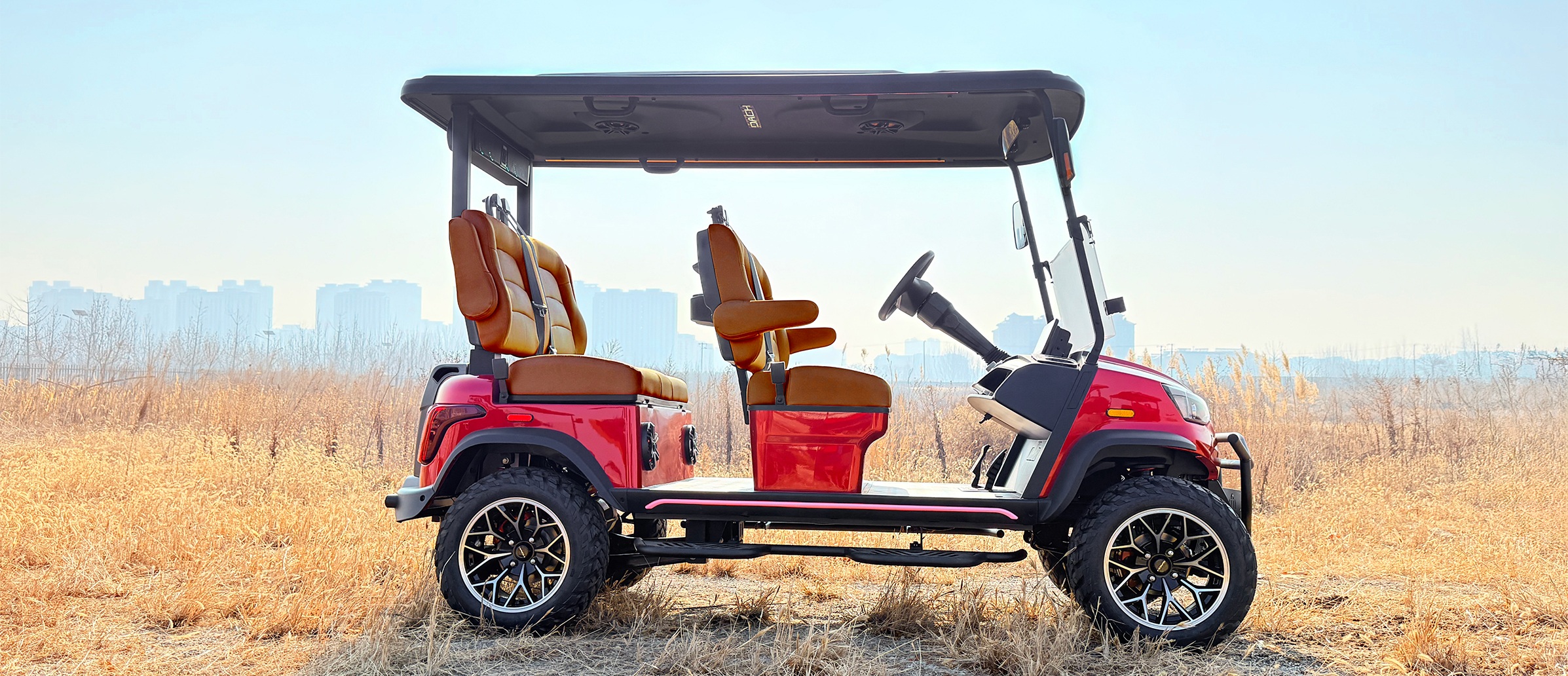

DC-H-F4
Color Options
Choose the color you like
| Battery | 72V 105Ah Lithium Iron Phosphate 7.7 KWH |
| Controller | 72V / 350A Controller |
| Motor Type | 72V AC 6.3KW Motor |
| Charger | 72V 1.5KW, Discharge Power＜1.2KW |
| Dimensions | 3080*1400*2020 mm 121.26*55.12*79.53 in |
| Wheelbase | 85.04 in |
| Maximum Load-Carrying Capacity | 758 lbs |
| Accelerator | Hall Accelerator 0-5V |
| Curb Weight | 1463.87 lbs |
| Passenger Capacity | 4 |
| Body Structure | Carbon steel profile welded frame (Tube beam frame) |
| Driving Range | ≥ 55.92 mile（19mph Uniform Speed） |
| 0-19mph Acceleration time | 10s |
| Front Track | 1055 mm / 41.5 in |
| Rear Track | 1026 mm / 40.4 in |
| Minimum Turning Radius | 4.7 m / 15.42 ft |
| Maximum Gradeability | 30% |

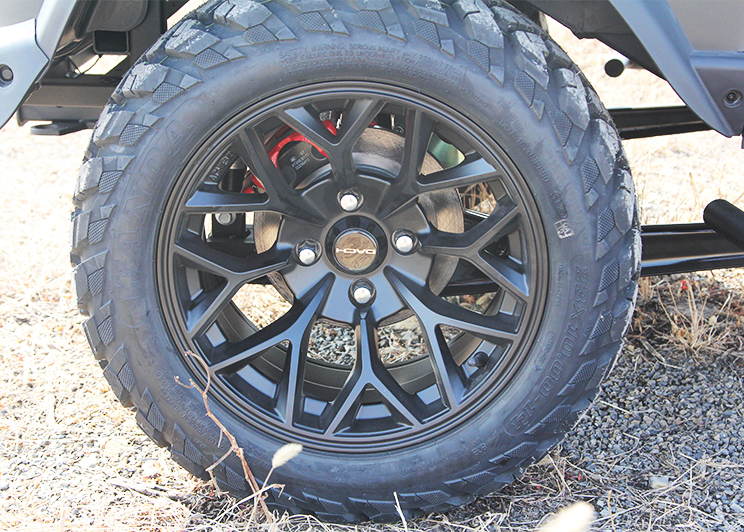

| Tire (Explorer / Rider) | 23*10-14, 225 / 50R14 |
| Minimum Ground Clearance | 162 mm (Design Data） |
| Braking Distance | 4 m / 13.1 ft |
| Windshield | Hinged Double-folded Edge Glass |

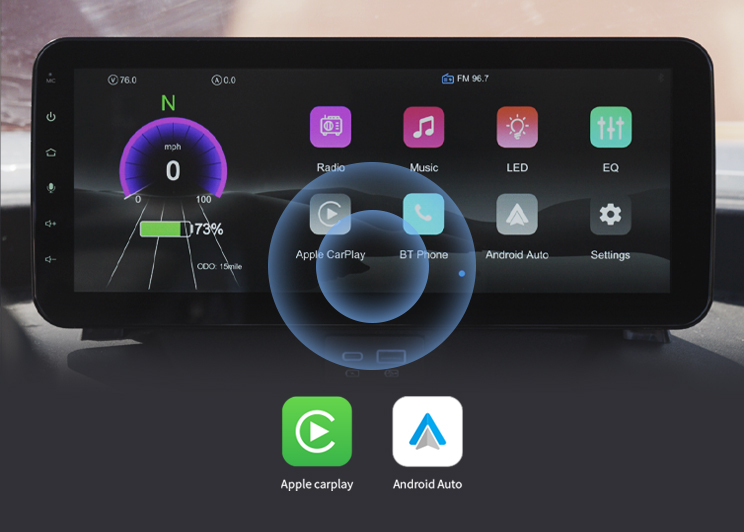

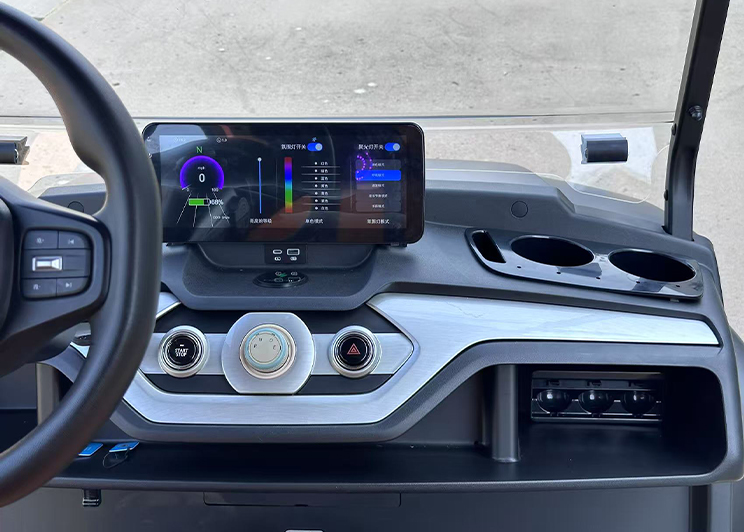

| Dash Board | 12.3-inch multimedia touch screen (integrated instrument panel, including battery power, voltage, current, mileage, speed, error code, reversing camera display, MP3, ambient light control, radio, Car-Play, etc. |
| Plastic Parts For The Entire Vehicle | PP & PP + Glass Fiber & ABS&PC + ABS & TPE & Rubber & PP + EPDM-T2 |
| Canopy Material | PP |
| Rearview Mirror | Left and right rearview mirrors (with turn signal lights), interior rearview Mirrors |
| Suspension Type | Front: MacPherson independent suspension; Rear: integral rear axle + spiral spring, fore and rear are red spring |
| Steering System | Self-compensating rack and pinion steering system & two-way adjustment of steering column & waterproof multi-functional steering wheel |
| Braking System | Front and rear disc brakes (red calipers) & electronic parking brake |
| Lighting System | Front LED headlights + position lights + turn signal lights, rear taillights + position lights + turn signal lights + brake lights, dome lights, roof ambient lights, high-position brake lights, side skirt ambient lights, reverse lights + rear reflector, license plate lights |
| Steering Column | Equipped with combination switches (turn signal switch (self-resetting), position light switch, high/low beam light switch) |
| Drive Mode | Rear-wheel Drive |
| Rear Axle Transmission Ratio | 12.3 : 1 |
| Starting Mode | NFC Card Start&Phone NFC & Phone Keyless push -to-start button |
| Gearshift Switch | R-N-D-E |
| Sound Equipment | Soundbar*1 & 6.5-inch roof speakers*2 & 6.5-inch seat bucket speaker*2 |
| Driver Assistance Function | Cruise Control |
| Mobile Phone Charging | Wireless charging & USB charging & Type-C charging |
| Music Playing | Bluetooth connection & USB File |
Performance
Advanced Electric Powertrain Delivers Exhilarating Performance

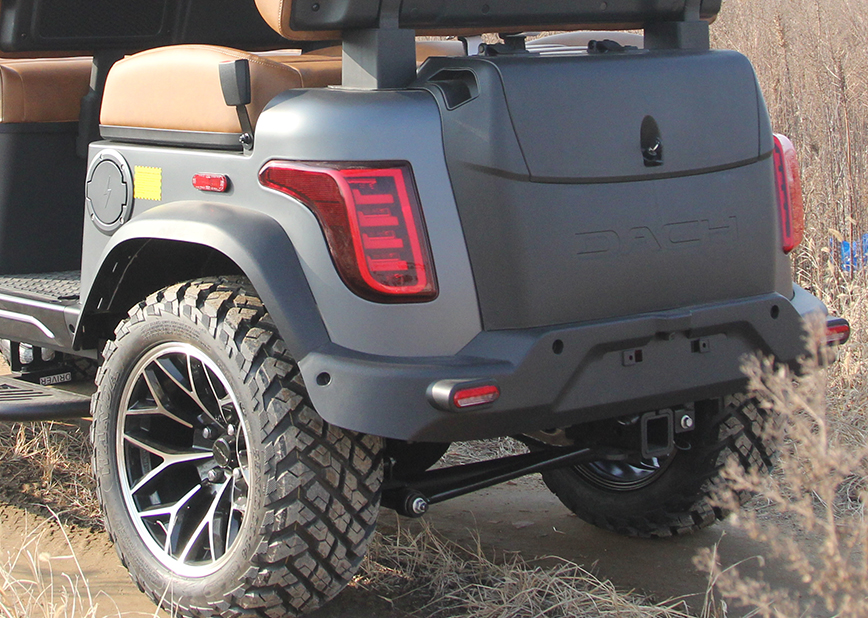

Storage Trunk
The rear storage trunk is idealfor organizing your belongings.With ample space, it easilyholds outdoor gear, clothes, andother essentials. Storing andaccessing items is simple,ensuring convenient transportof everything you need.

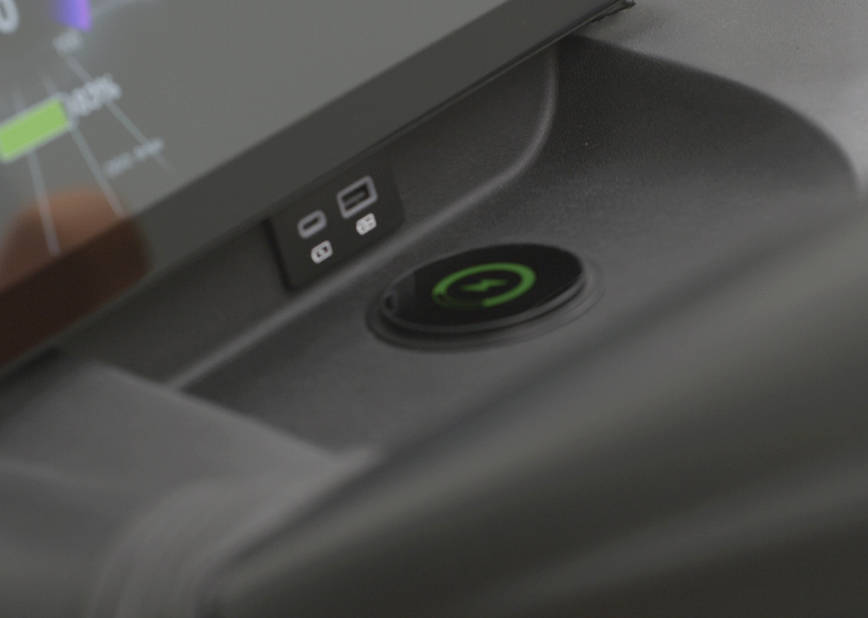

Wireless Charging
The most prominent advantage is the convenience it offers. With wireless charging, drivers and passengers no longer need to fumble with charging cables. They can simply place their compatible devices on the wireless charging pad inside the car, which is usually located in a convenient spot such as the center console or the dashboard. This seamless process allows for immediate charging without the need for plug - in operations, making it especially useful when getting in and out of the vehicle in a hurry.

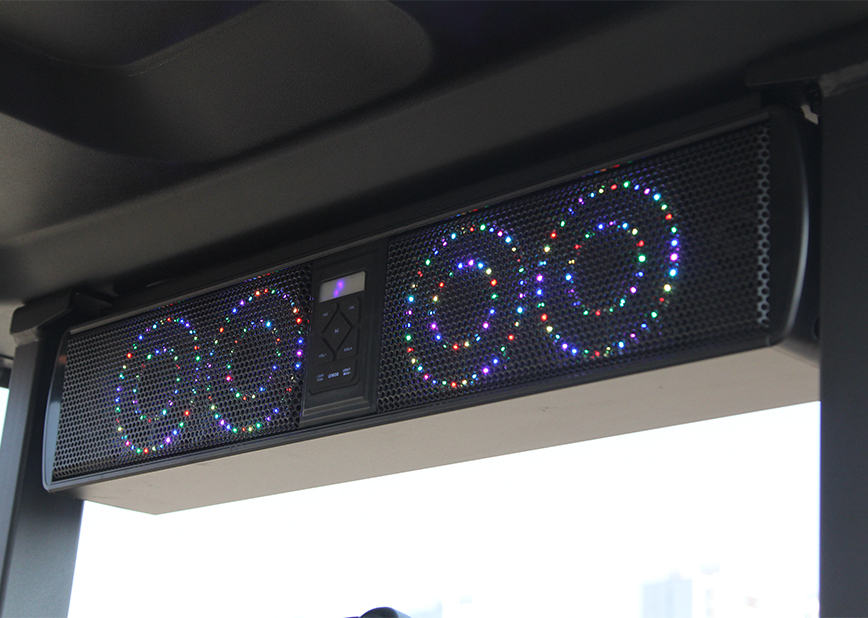

Sound Bar
Elevate your ridingentertainment with ourcompact sound systemDesigned to fit perfectly, itdelivers dynamic sound througha soundbar and extra speakers.Wirelessly stream your favoritemusic from any compatibledevice for a smooth, clutter-freeexperience. Plus, enjoyadjustable light modes thatpulse with the beat of the
music.

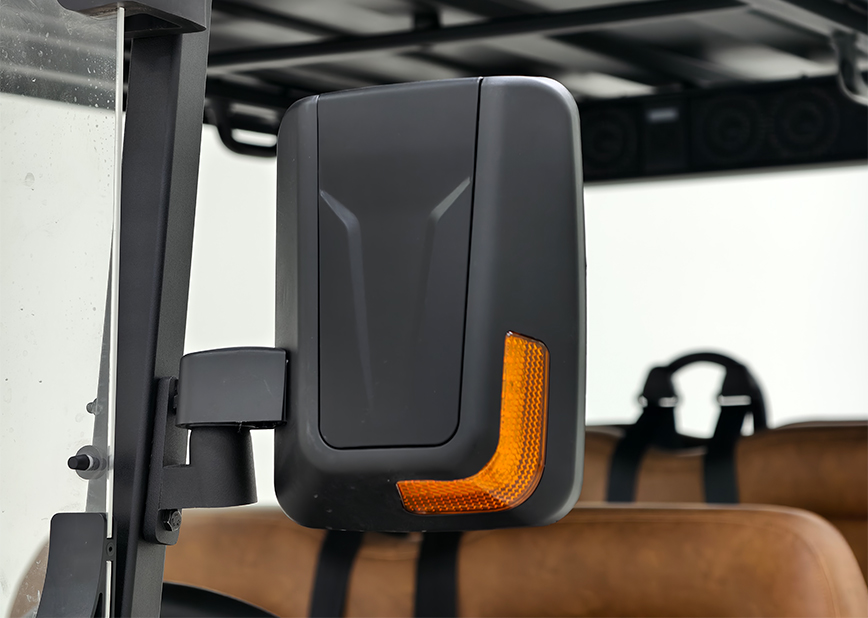

Mirror Adjustment Precautions
Adjust each mirror manually before turning the keyto start the vehicle.
