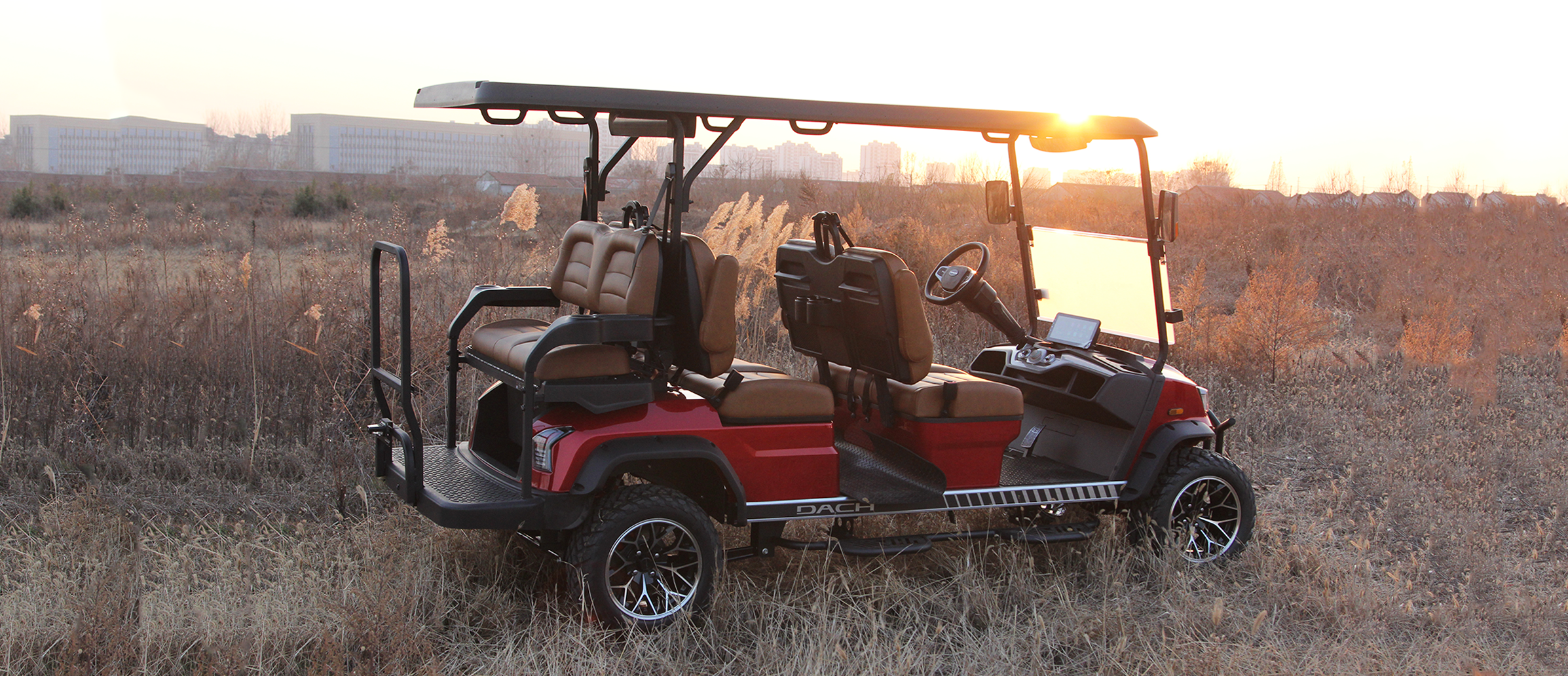

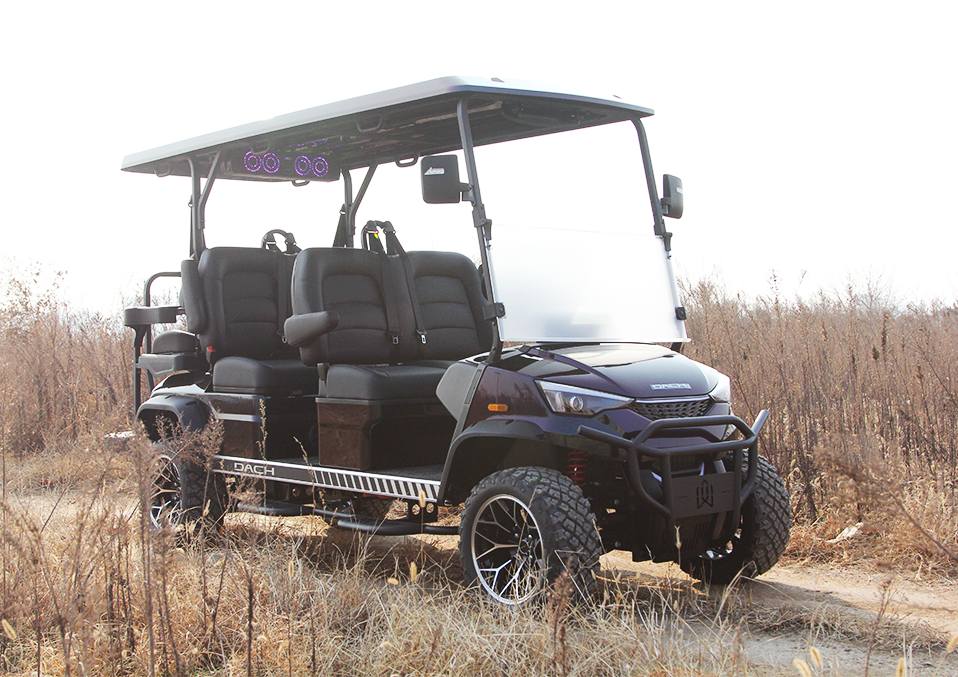

DC-H-F4+2

Color Options

Choose the color you like

Electric System

Battery	72 V 105 Ah LIFeP04 7.7 kWh
Controller	72V DC 350A
Motor	72V DC 6.3 kW AC Motor
Onboard Charger	72v 1.5 kW

Body

Overall Dimensions (L/W/H)	149.6 x 55.7 x 79.5 in
Wheelbase	100.79 in
Maximum Load Capacity	1137.58 lb
Accelerator	Hall Accelerator 0-5V
Curb Weight	1433lb
Passenger Capacity	6
Frame Structure	Low carbon steel Stamped and Welded Frame
Driving Range	≥ 55.9 mlles at constant 19 mph
Maximum factory speed	19mph
Acceleration	0-19 mph in 10 seconds
Front Track Width	43.39 in
Rear Track Width	41.61 in
Minimum Turning Radius	15.09 ft
Maximum Gradeability	30%
Tire	225/50 R14 (14 inch Aluminum Alloy Rim)

Specifications

Minimum Ground Clearance	7.09 in
Braking Distance	13 ft
Windshield	Hinged Double-folded Edge Glass
Instrument Display	12.3 inch Multimedia Touchscreen Integrated Instrument Panel with Battery Status Voltage, Current Speed, Mileage, Fault Codes
Plastic Parts For The Entire Vehicle	PP&PP+Glass Fiber&ABS&PC+ABS&TPE&Rubber&PP+EPDM-T2
Roof Plastic Parts	PP
Rearview Mirror	Left and right rearview mirrors (with turn signal lights), interior rearview mirrors
Suspension System	Front Double A arm Independent suspension Rear Integrated Rear Axle with Coil Springs
Steering System	Self Compensating Rack and Pinion Steering Adjustable Steering Column Waterproof Multifunction Steering Wheel
Braking system	Front and Rear Hydraulic Disc Brakes Electronic Parking Brake
Lighting System	Front LED headlights Position lights Turn Signal Lights Brake Lights License Plate Lights
Steering Column	Turn Signal Switch with Self Canceling Function Position Light Switch High Beam and Low Beam Switch
Drive Mode	Rear-wheel Drive
Rear Axle Gear Ratio	12.3:1
Starting Mode	NFC Card Start&Phone NFC&Phone Keyless Push-Button Start
Gearshift Switch	R-N-D-E
Sound Equipment	4-inch seat bucket speaker2+soundbar1
Driver Assistance Function	Cruise Control
Mobile Phone Charging	Wireless charging&USB charging&Type-C charging
Music Playing	Bluetooth connection&USB File reading

Performance

Advanced Electric Powertrain Delivers Exhilarating Performance

TIRE

Our 14" alloy rims blend style and functionality. Designed with water dispersion channels, they enhancetraction, cornering and braking, while the flat tread minimizes grass damage. These lightweight, low-profile 4-ply tires offer superior performance over traditional all-terrain tires, thanks to their compactdesign and reduced footprint.

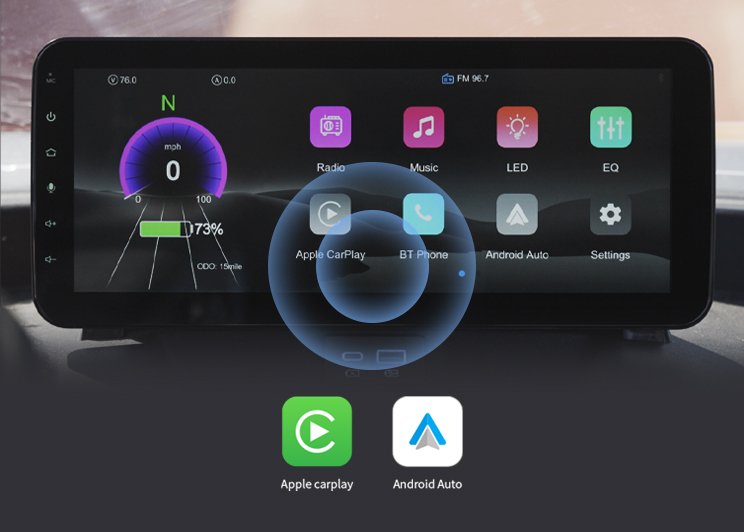

TOUCHSCREEN

This 10.1-inch touchscreen enhances the driving experience with seamless Apple CarPlay and Android Autointegration, allowing easy access to music, navigation, and calls. it also serves as the central hub forcontrolling various features like Bluetooth, radio, speedometer, backup camera, and app connections,offering both convenience and entertainment on the go.

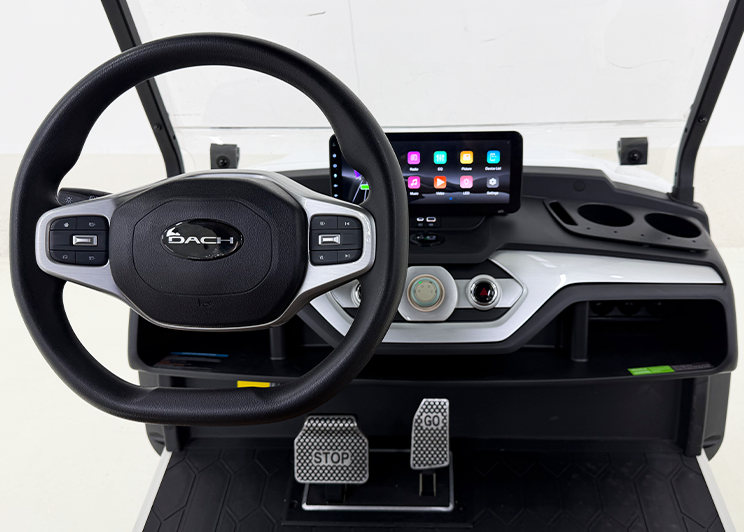

CENTRAL CONTROL

Forimproved control, safety and comfort for drivers of all body types. The simple knob enables fastadjustments and provides the optimal distance from the steering wheel.

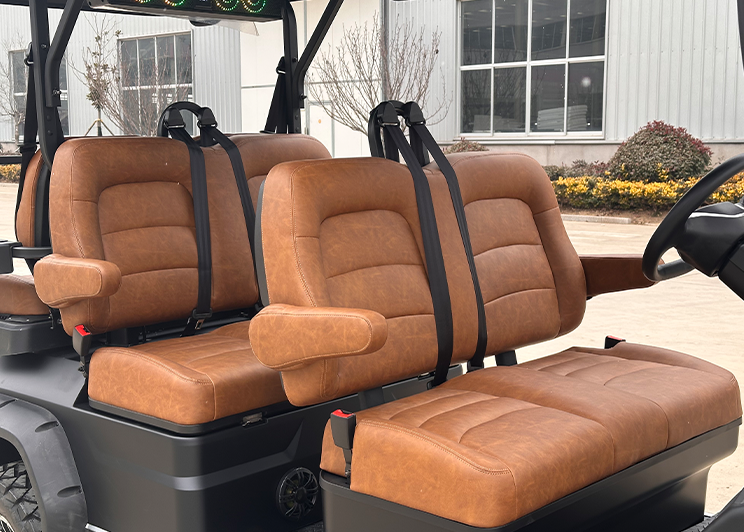

SEAT

The two-tone leather seats offer exceptional elegance and comfort, with premium materials providing asoft, luxurious ride. For enhanced passenger safety, they are equipped with secure three-point seat belts.Additionally, the 90-degree adjustable ergonomic armrest offers personalized support, enhancing overallcomfort and ride quality.

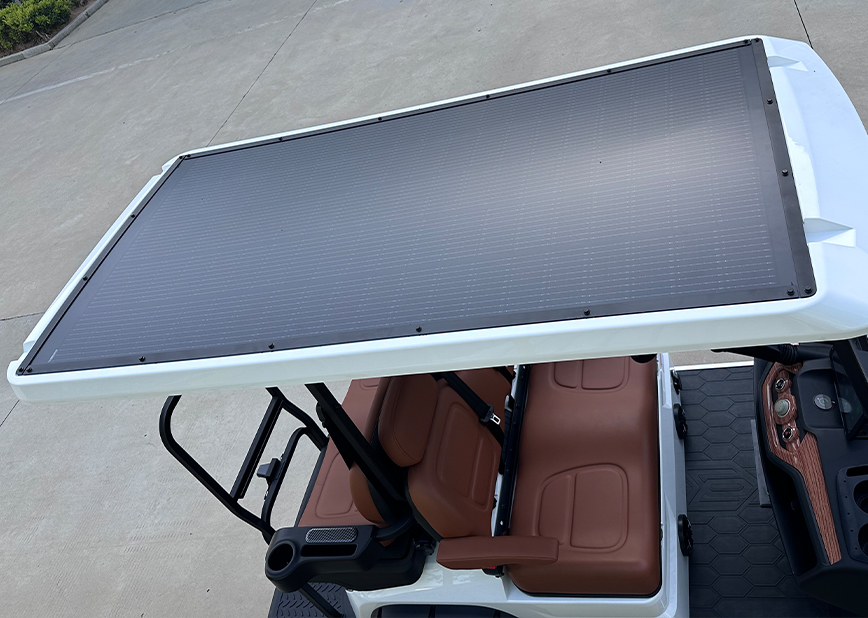

Solar Roofs

Solar roofs, an innovative integration of solar technology and architecture, are gaining increasing popularity due to their numerous benefits.

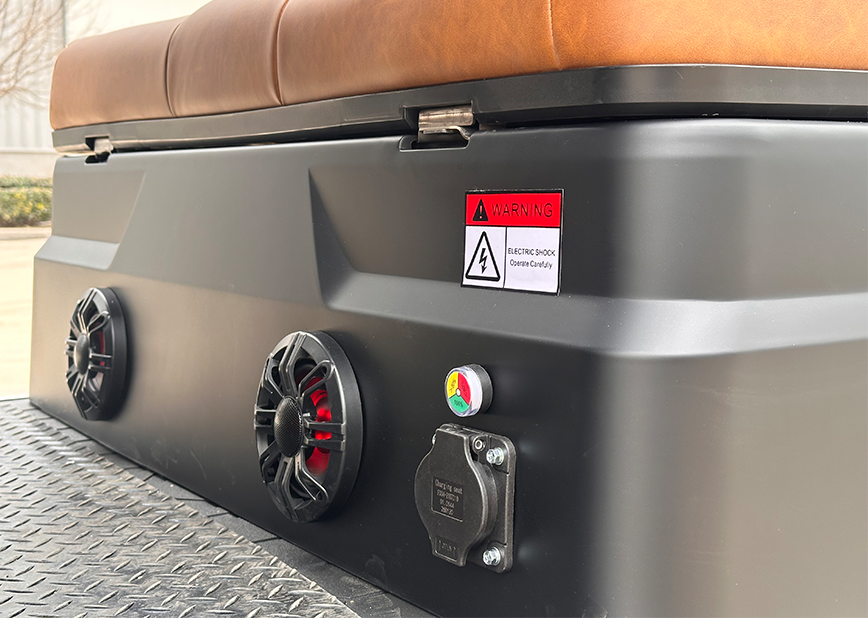

ILLUMINATED SPEAKERS

The speaker, two placed under the seat and two on the roof, combinesvibrant lights with exceptionalsound quality. Designed todeliver dynamic audio andcreate visually stunningambient lighting, it elevatesyour experience with bothimpressive sound and acaptivating atmosphere.

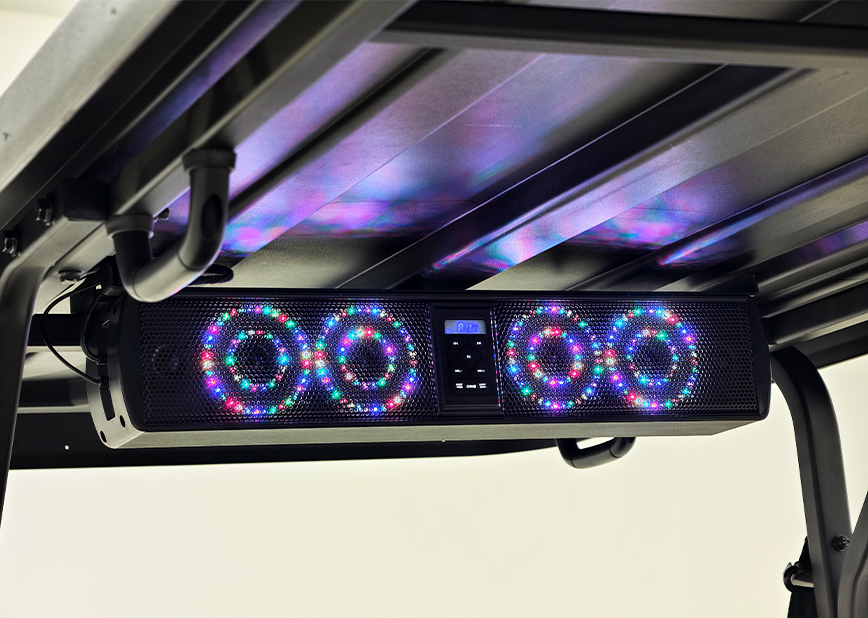

SOUND BAR

Elevate your ridingentertainment with ourcompact sound systemDesigned to fit perfectly, itdelivers dynamic sound througha soundbar and extra speakers.Wirelessly stream your favoritemusic from any compatibledevice for a smooth, clutter-freeexperience. Plus, enjoyadjustable light modes thatpulse with the beat of the
music.

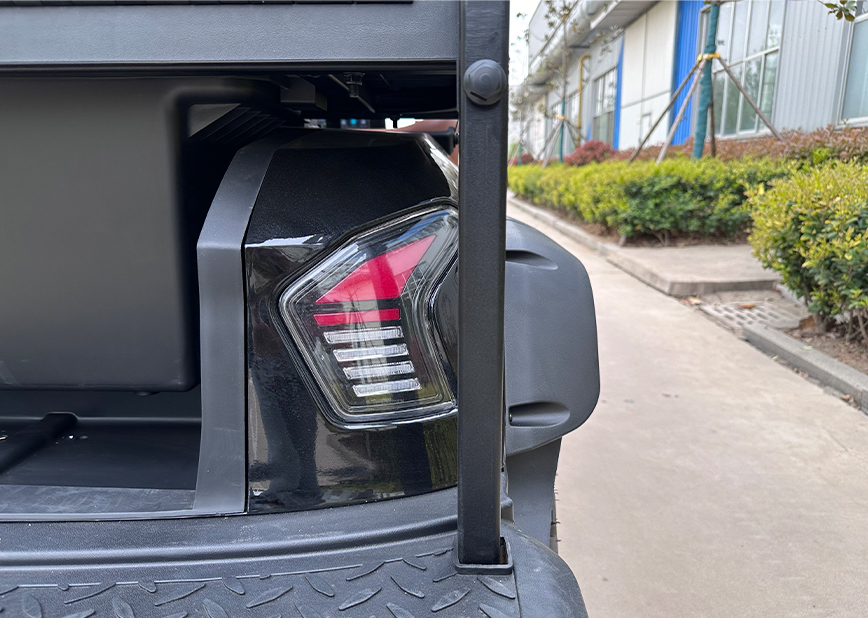

TAIL LIGHT

Designed for night driving, embodies the best performing LED technology, offering unparalleled illumination for safe and comfortable navigation after dark.
