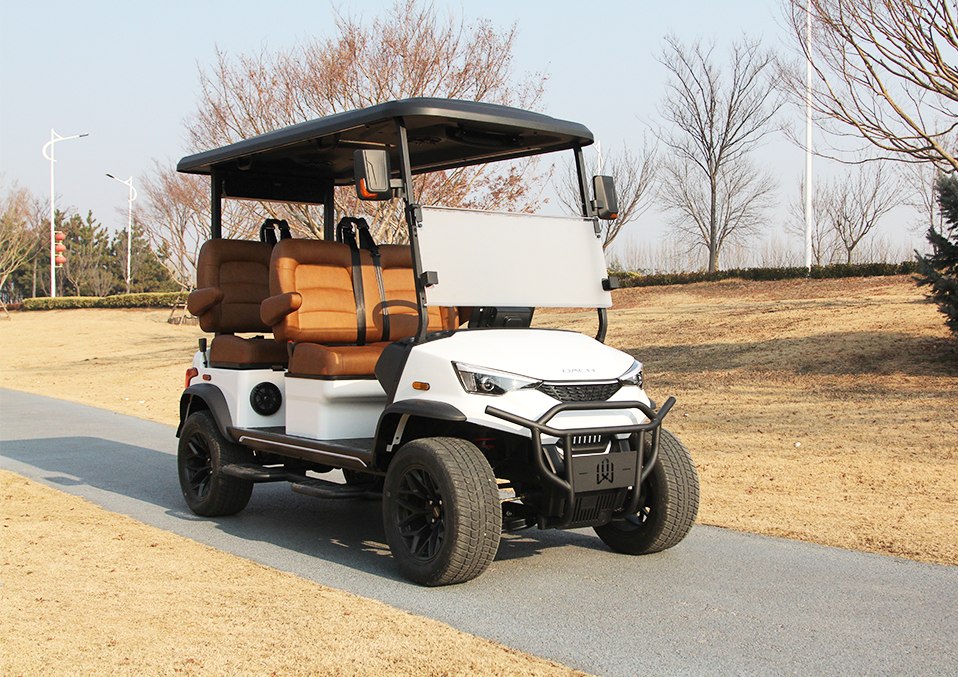

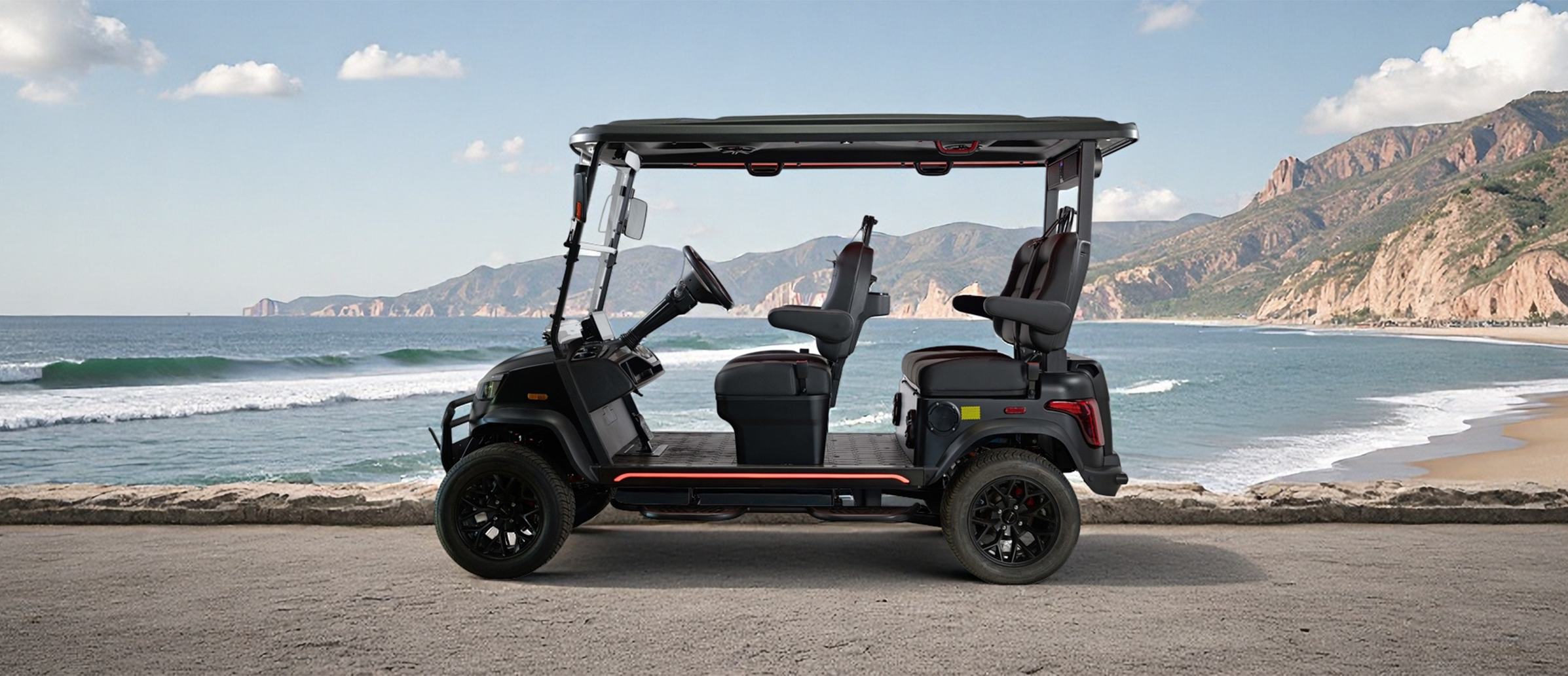

Custom OEM Factory DC-G-F4 Electric Golf Cart Four Seats with NFC Golf Buggy Golf Car

DACH introduces its newly upgraded DC-G-F4 unit, continuing to strengthen its market leadership in the personal transport vehicle (PTV) industry. Each detailed improvement and technical enhancement is purpose-built to upgrade users’ travel quality, offering longer driving distances, remarkably steady vehicle control, and fully optimized riding comfort for diverse usage scenarios.

This updated DC-G-F4 comes with sophisticated interior and exterior styling, polished driving dynamics, increased storage volume, and a sturdy, uniquely shaped rear body. As an advanced upgrade based on the proven DC-G-F4 platform, it represents innovative advancements in vehicle styling and user-focused travel experience. Combining enhanced practical features with striking, attractive visual design, this premium vehicle brings an exclusive and luxurious daily riding experience.

Custom OEM Factory DC-G-F4 Electric Golf Cart Four Seats with NFC Golf Buggy Golf Car

Complete Climate Control

LIFTED CAR

The Earth At Your Wheel

Color Options

Choose the color you like

Electric System

Battery	72V 105Ah Lithium Iron Phosphate 7.7 KWH
Controller	72V / 350A Controller
Motor Type	72V AC 6.3KW Motor
Charger	72V 1.5KW, Discharge Power＜1.2KW

Body

Dimensions	308014002020 mm 121.2655.1279.53 in
Wheelbase	85.04 in
Maximum Load-Carrying Capacity	758 lbs
Accelerator	Hall Accelerator 0-5V
Curb Weight	1463.87 lbs
Passenger Capacity	4
Body Structure	Carbon steel profile welded frame (Tube beam frame)
Driving Range	≥ 55.92 mile（19mph Uniform Speed）
0-19mph Acceleration time	6s
Front Track	1055 mm / 41.5 in
Rear Track	1026 mm / 40.4 in
Minimum Turning Radius	4.7 m / 15.42 ft
Maximum Gradeability	30%
Tire (Explorer / Rider)	23*10-14, 225 / 50R14

Specifications

Minimum Ground Clearance	162 mm (Design Data）
Braking Distance	4 m / 13.1 ft
Windshield	Hinged Double-folded Edge Glass
Dash Board	12.3-inch multimedia touch screen (integrated instrument panel, including battery power, voltage, current, mileage, speed, vehicle status, reversing camera display, MP3, ambient light control, radio, Car-Play, etc.
Plastic Parts For The Entire Vehicle	PP & PP + Glass Fiber & ABS&PC + ABS & TPE & Rubber & PP + EPDM-T2
Canopy Material	PP
Rearview Mirror	Left and right rearview mirrors (with turn signal lights), interior rearview Mirrors
Suspension Type	Front: MacPherson independent suspension; Rear: integral rear axle + spiral spring, fore and rear are red spring
Steering System	Self-compensating rack and pinion steering system & two-way adjustment of steering column & waterproof multi-functional steering wheel
Braking System	Front and rear disc brakes (red calipers) & electronic parking brake
Lighting System	Front LED headlights + position lights + turn signal lights, rear taillights + position lights + turn signal lights + brake lights, dome lights, roof ambient lights, high-position brake lights, side skirt ambient lights, reverse lights + rear reflector, license plate lights
Steering Column	Equipped with combination switches (turn signal switch (self-resetting), position light switch, high/low beam light switch)
Drive Mode	Rear-wheel Drive
Rear Axle Transmission Ratio	12.3 : 1
Starting Mode	NFC Card Start&Phone NFC & Phone Keyless push -to-start button
Gearshift Switch	R-N-D-E
Sound Equipment	Soundbar1 & 6.5-inch roof speakers2 & 6.5-inch seat bucket speaker*2
Driver Assistance Function	Cruise Control
Mobile Phone Charging	Wireless charging & USB charging & Type-C charging
Music Playing	Bluetooth connection & USB File

Performance

Advanced Electric Powertrain Delivers Exhilarating Performance

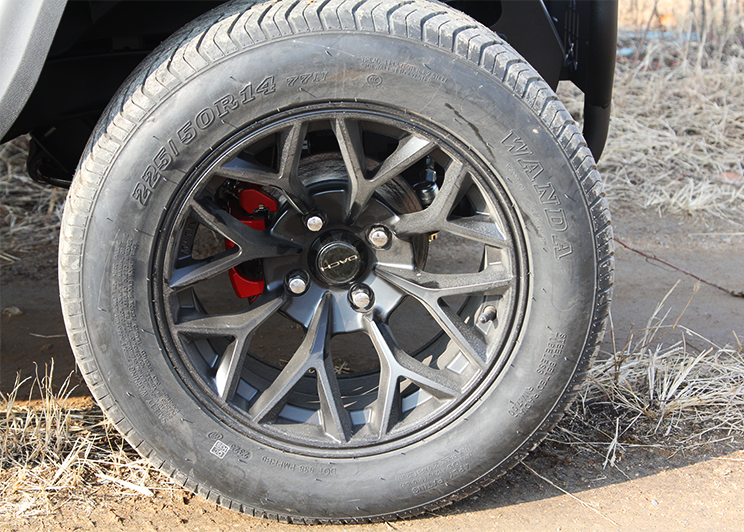

14" Alloy Wheels

These 14 inch alloy wheels blend eye catching aesthetics with solid real world functionality. Designed with water evacuation grooves, they boost grip for improved traction, stable cornering and reliable braking performance. At the same time, their flat profile tread significantly reduces potential damage to grassy surfaces. Constructed as lightweight, low profile 4 ply tires, they outperform standard all terrain alternatives, thanks to their streamlined build and reduced ground contact area.

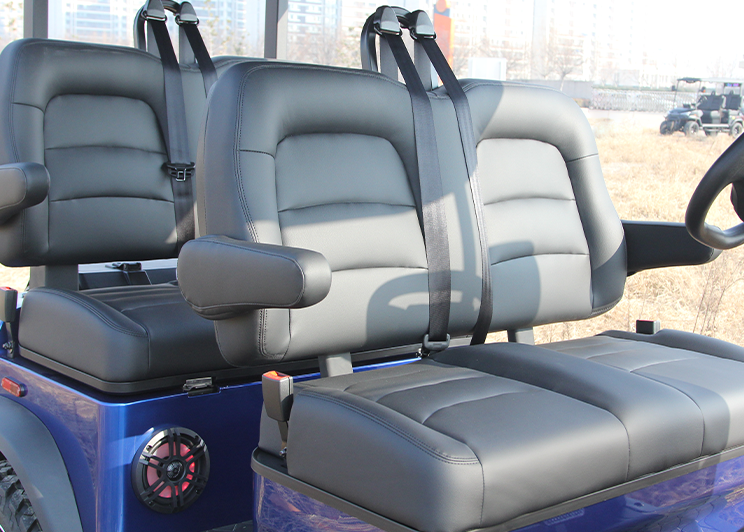

Two-Tone Leather Seats

Crafted with high grade materials, these dual tone leather seats combine refined styling with great comfort and bring you a plush, premium riding feel. Built in dependable three point seat belts work to safeguard every passenger. Moreover, the ergonomic armrest supports 90 degree angle adjustment for personalized support, which substantially improves seating comfort and overall ride quality.

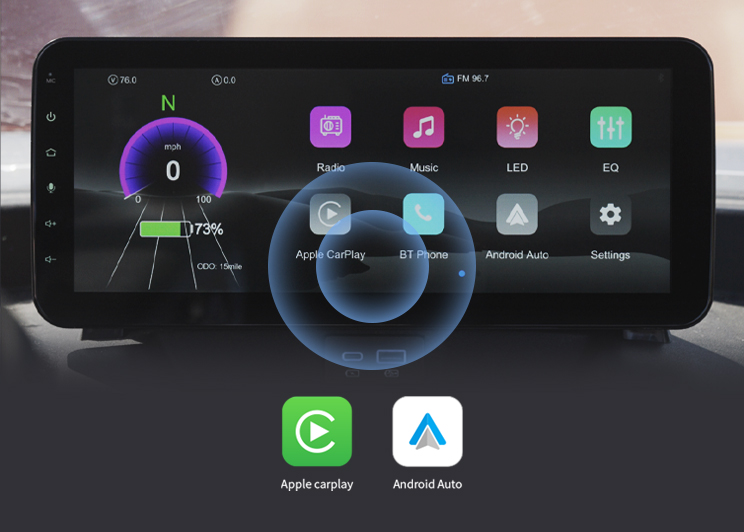

12.3-inch Touchscreen

Boasting smooth Apple CarPlay and Android Auto connectivity, this 12.3 inch touchscreen makes music playback, route navigation and phone calls much easier and elevates your overall driving experience. Acting as an all in one control center, it manages numerous functions including Bluetooth connection, radio, speedometer display, rearview camera and app pairing. It brings both handy usability and enjoyable onboard entertainment during your rides.

Steering Wheel Adjustment

Storage Trunk

Ideal for tidying up personal belongings, this rear cargo trunk comes with ample interior space. It can conveniently hold outdoor gear, clothing and assorted everyday items. Placing and taking out items can be done effortlessly, making the transport of all your essential belongings completely hassle free.

Wireless Charging

Outstanding usability stands out as its core advantage. Wireless charging rids drivers and passengers of the nuisance caused by disorganized charging cables. Simply lay your compatible devices onto the vehicle built wireless charging pad, which is commonly located at user friendly spots such as the center console or dashboard. This straightforward process triggers charging immediately without cable insertion operations, making it exceptionally suitable for scenarios where users frequently board and leave the cart.

Key

This vehicle enables ignition control through both NFC keys and Bluetooth keys, with two NFC keys provided in the standard factory configuration. NFC key operating instructions: Hold the NFC key near the NFC sensing area; the vehicle will power on and send out an audio startup prompt via Bluetooth. Bluetooth key operating instructions: Carry your paired Bluetooth capable gadget, such as a smartphone or smart wristband, while approaching the vehicle. Hit the start button to ignite the golf cart, and you will hear the matching startup sound notification.

Sound Bar

Liven up your riding time entertainment with our compact audio assembly. Optimized for seamless installation, this system delivers dynamic, high impact sound through its soundbar and extra speakers. Stream your favorite music wirelessly from any compatible device to enjoy a smooth, cord free listening experience. On top of that, it offers adjustable light modes that blink synchronously with music rhythms.
