Dach is proud to present the upgraded version of DC-H-F4, strengthening the leading position of Dach in the PTV market. All our efforts are dedicated to ensuring you experience the joy of going farther, driving smoother, and enjoying more.

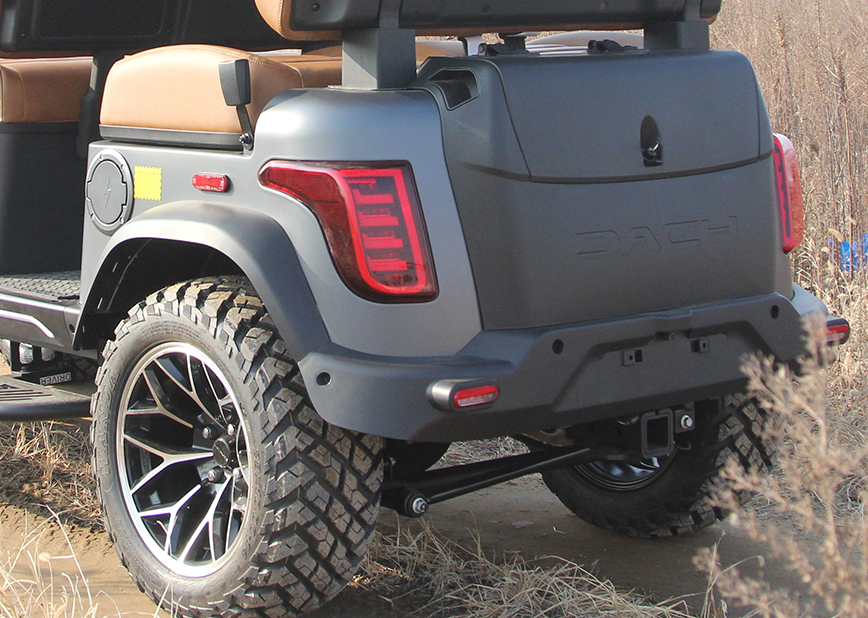

The Dach DC-H-F4 delivers a refined atmosphere, smoother driving, more storage, and abold sculpted rear. As a new evolution of the DC-H-F4 platform, it represents a seconddirection of exploration in design and experience – blending enhanced practicality with a more expressive and distinctive style for everyday driving.
Dach is proud to present the upgraded version of DC-H-F4, strengthening the leading position of Dach in the PTV market. All our efforts are dedicated to ensuring you experience the joy of going farther, driving smoother, and enjoying more.
The Dach DC-H-F4 delivers a refined atmosphere, smoother driving, more storage, and abold sculpted rear. As a new evolution of the DC-H-F4 platform, it represents a seconddirection of exploration in design and experience – blending enhanced practicality with a more expressive and distinctive style for everyday driving.
Golf Car
The Earth At Your Wheel
Choose the color you like
| Battery | 72V 105Ah Lithium Iron Phosphate 7.7 KWH |
| Controller | 72V / 350A Controller |
| Motor Type | 72V AC 6.3KW Motor |
| Charger | 72V 1.5KW, Discharge Power<1.2KW |
| Dimensions | 3080*1400*2020 mm 121.26*55.12*79.53 in |
| Wheelbase | 85.04 in |
| Maximum Load-Carrying Capacity | 758 lbs |
| Accelerator | Hall Accelerator 0-5V |
| Curb Weight | 1463.87 lbs |
| Passenger Capacity | 4 |
| Body Structure | Carbon steel profile welded frame (Tube beam frame) |
| Driving Range | ≥ 55.92 mile(19mph Uniform Speed) |
| 0-19mph Acceleration time | 10s |
| Front Track | 1055 mm / 41.5 in |
| Rear Track | 1026 mm / 40.4 in |
| Minimum Turning Radius | 4.7 m / 15.42 ft |
| Maximum Gradeability | 30% |

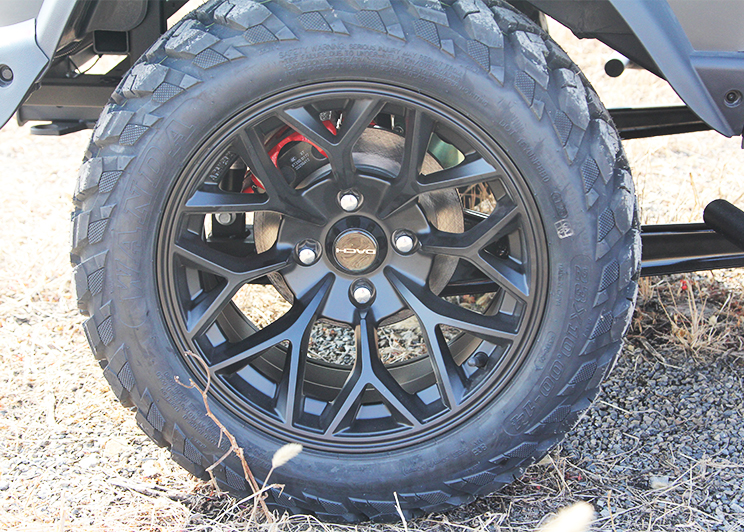

| Tire (Explorer / Rider) | 23*10-14, 225 / 50R14 |
| Minimum Ground Clearance | 162 mm (Design Data) |
| Braking Distance | 4 m / 13.1 ft |
| Windshield | Hinged Double-folded Edge Glass |

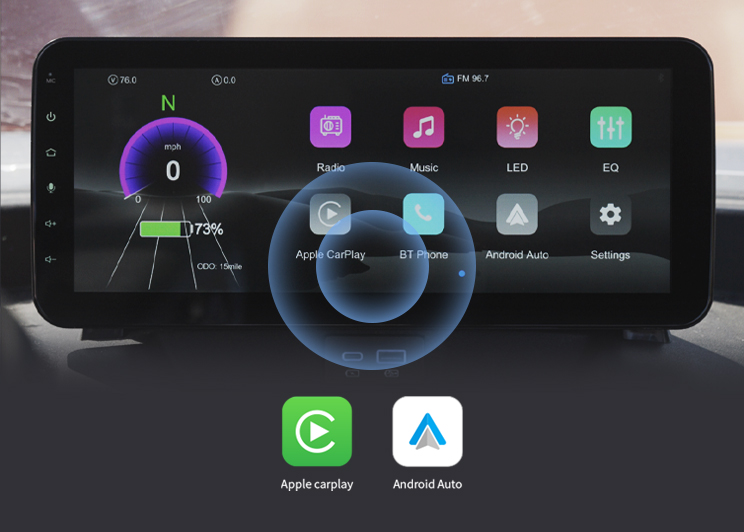

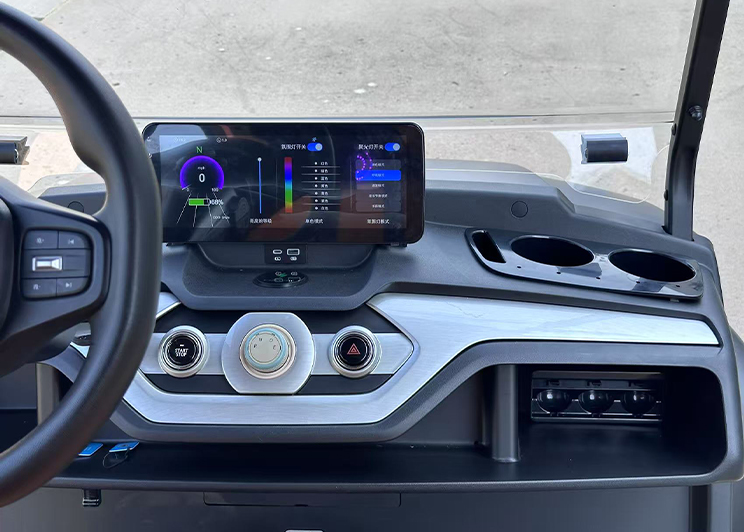

| Dash Board | 12.3-inch multimedia touch screen (integrated instrument panel, including battery power, voltage, current, mileage, speed, error code, reversing camera display, MP3, ambient light control, radio, Car-Play, etc. |
| Plastic Parts For The Entire Vehicle | PP & PP + Glass Fiber & ABS&PC + ABS & TPE & Rubber & PP + EPDM-T2 |
| Canopy Material | PP |

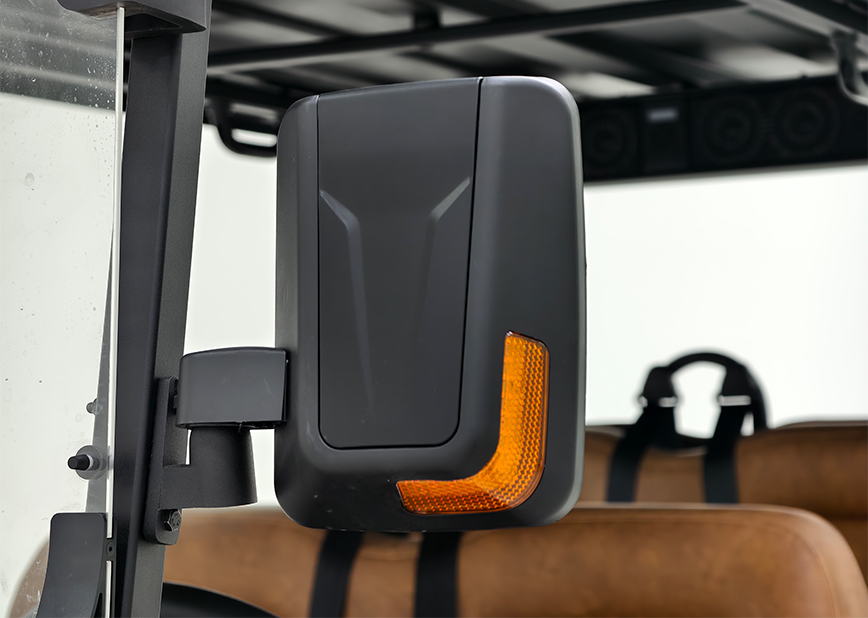

| Rearview Mirror | Left and right rearview mirrors (with turn signal lights), interior rearview Mirrors |
| Suspension Type | Front: MacPherson independent suspension; Rear: integral rear axle + spiral spring, fore and rear are red spring |
| Steering System | Self-compensating rack and pinion steering system & two-way adjustment of steering column & waterproof multi-functional steering wheel |
| Braking System | Front and rear disc brakes (red calipers) & electronic parking brake |
| Lighting System | Front LED headlights + position lights + turn signal lights, rear taillights + position lights + turn signal lights + brake lights, dome lights, roof ambient lights, high-position brake lights, side skirt ambient lights, reverse lights + rear reflector, license plate lights |
| Steering Column | Equipped with combination switches (turn signal switch (self-resetting), position light switch, high/low beam light switch) |
| Drive Mode | Rear-wheel Drive |
| Rear Axle Transmission Ratio | 12.3 : 1 |
| Starting Mode | NFC Card Start&Phone NFC & Phone Keyless push -to-start button |
| Gearshift Switch | R-N-D-E |

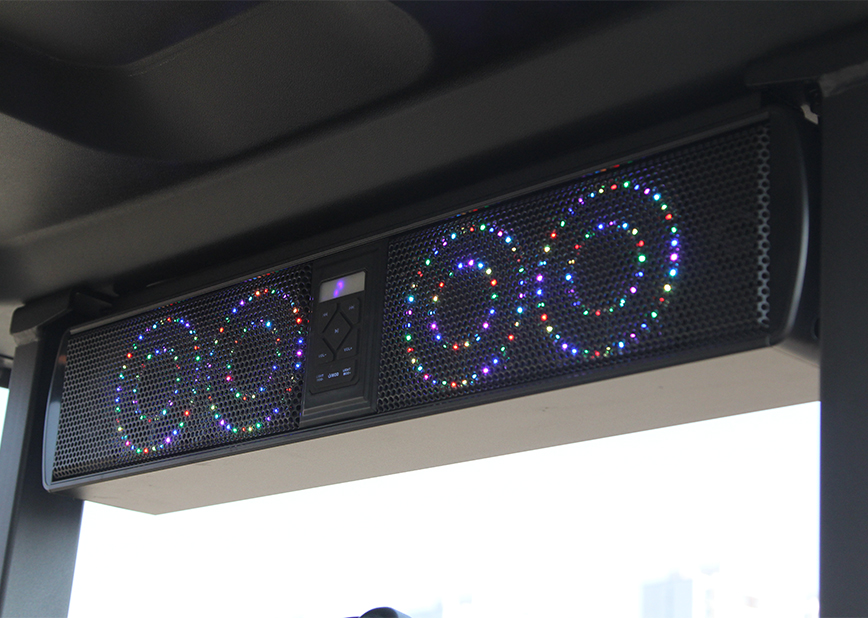

| Sound Equipment | Soundbar*1 & 6.5-inch roof speakers*2 & 6.5-inch seat bucket speaker*2 |
| Driver Assistance Function | Cruise Control |

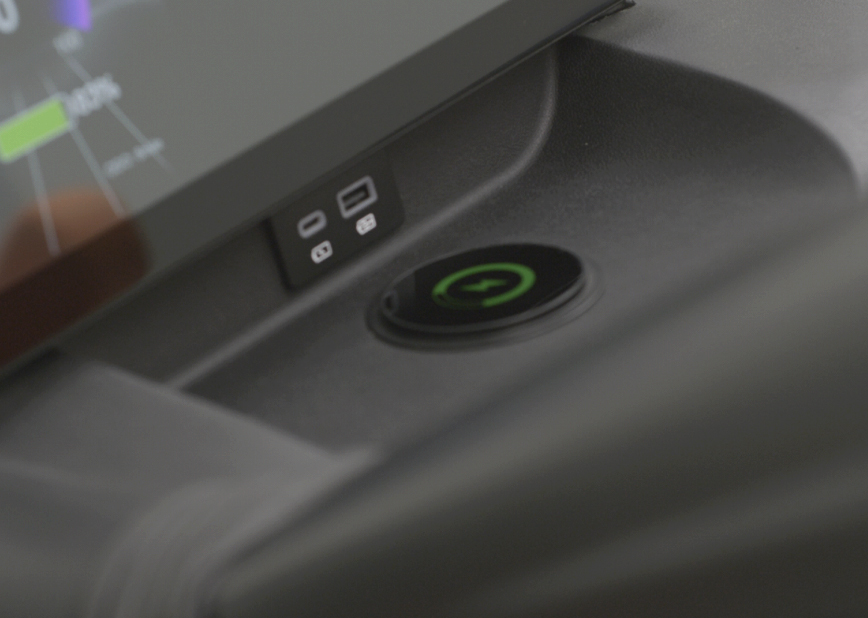

| Mobile Phone Charging | Wireless charging & USB charging & Type-C charging |
| Music Playing | Bluetooth connection & USB File |
Advanced Electric Powertrain Delivers Exhilarating Performance
