Experienced Manufacturer Four Seats DC-G-F4 Lifted Golf Car Robust Electric Golf Buggy Bulk Order

DACH has launched the all-new upgraded DC-G-F4 model, further solidifying its dominant competitiveness within the personal transport vehicle (PTV) sector. Every meticulous refinement and technical upgrade is engineered to elevate user travel experiences, supporting extended driving mileage, ultra-stable vehicle handling, and comprehensively improved ride comfort for all scenarios.

The revamped DC-G-F4 boasts an upscale interior and exterior aesthetic, refined driving performance, enlarged storage capacity, and a rugged, uniquely contoured rear body structure. Serving as an advanced iteration built upon the mature DC-G-F4 platform, it embodies innovative progress in automotive design and user-centric experience. Merging upgraded practical functionalities with standout, head-turning aesthetics, this premium model delivers a one-of-a-kind and high-end daily travel experience.

Experienced Manufacturer Four Seats DC-G-F4 Lifted Golf Car Robust Electric Golf Buggy Bulk Order

Complete Climate Control

LIFTED CAR

The Earth At Your Wheel

Color Options

Choose the color you like

Electric System

Battery	72V 105Ah Lithium Iron Phosphate 7.7 KWH
Controller	72V / 350A Controller
Motor Type	72V AC 6.3KW Motor
Charger	72V 1.5KW, Discharge Power＜1.2KW

Body

Dimensions	308014002020 mm 121.2655.1279.53 in
Wheelbase	85.04 in
Maximum Load-Carrying Capacity	758 lbs
Accelerator	Hall Accelerator 0-5V
Curb Weight	1463.87 lbs
Passenger Capacity	4
Body Structure	Carbon steel profile welded frame (Tube beam frame)
Driving Range	≥ 55.92 mile（19mph Uniform Speed）
0-19mph Acceleration time	6s
Front Track	1055 mm / 41.5 in
Rear Track	1026 mm / 40.4 in
Minimum Turning Radius	4.7 m / 15.42 ft
Maximum Gradeability	30%
Tire (Explorer / Rider)	23*10-14, 225 / 50R14

Specifications

Minimum Ground Clearance	162 mm (Design Data）
Braking Distance	4 m / 13.1 ft
Windshield	Hinged Double-folded Edge Glass
Dash Board	12.3-inch multimedia touch screen (integrated instrument panel, including battery power, voltage, current, mileage, speed, vehicle status, reversing camera display, MP3, ambient light control, radio, Car-Play, etc.
Plastic Parts For The Entire Vehicle	PP & PP + Glass Fiber & ABS&PC + ABS & TPE & Rubber & PP + EPDM-T2
Canopy Material	PP
Rearview Mirror	Left and right rearview mirrors (with turn signal lights), interior rearview Mirrors
Suspension Type	Front: MacPherson independent suspension; Rear: integral rear axle + spiral spring, fore and rear are red spring
Steering System	Self-compensating rack and pinion steering system & two-way adjustment of steering column & waterproof multi-functional steering wheel
Braking System	Front and rear disc brakes (red calipers) & electronic parking brake
Lighting System	Front LED headlights + position lights + turn signal lights, rear taillights + position lights + turn signal lights + brake lights, dome lights, roof ambient lights, high-position brake lights, side skirt ambient lights, reverse lights + rear reflector, license plate lights
Steering Column	Equipped with combination switches (turn signal switch (self-resetting), position light switch, high/low beam light switch)
Drive Mode	Rear-wheel Drive
Rear Axle Transmission Ratio	12.3 : 1
Starting Mode	NFC Card Start&Phone NFC & Phone Keyless push -to-start button
Gearshift Switch	R-N-D-E
Sound Equipment	Soundbar1 & 6.5-inch roof speakers2 & 6.5-inch seat bucket speaker*2
Driver Assistance Function	Cruise Control
Mobile Phone Charging	Wireless charging & USB charging & Type-C charging
Music Playing	Bluetooth connection & USB File

Performance

Advanced Electric Powertrain Delivers Exhilarating Performance

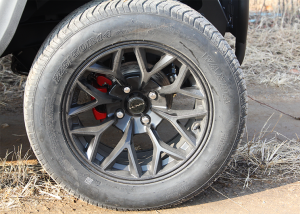

14" Alloy Wheels

Our 14" alloy wheels strike a perfect balance between stylish appearance and practical utility. Equipped with water dispelling channels, they bring better grip for traction, cornering manoeuvres and braking. Meanwhile, the flat tread pattern greatly lowers the risk of damaging lawn grass. As lightweight low profile 4 ply tyres, they deliver noticeably better performance than conventional all terrain tyres, attributed to their compact structure and smaller ground contact footprint.

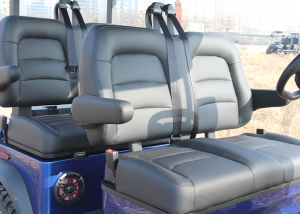

Two-Tone Leather Seats

Designed for elegance and comfort, the two tone leather seats are constructed from premium materials to deliver a soft, luxurious riding experience. Secure three point seat belts are fitted to advance passenger safety. Beyond that, the 90 degree adjustable ergonomic armrest offers user tailored support, greatly enhancing total seating comfort and ride quality.

12.3-inch Touchscreen

Equipped with seamless Apple CarPlay and Android Auto integration, our 12.3 inch touchscreen simplifies access to music, navigation and calling features to enrich your driving experience. Operating as a central hub for multiple vehicle functions such as Bluetooth, radio, speedometer, backup camera and app connections, it delivers practical convenience together with in motion entertainment.

Steering Wheel Adjustment

It delivers better handling performance, enhanced safety and higher comfort levels for operators with varying physical builds. The user friendly knob permits quick position tweaks, helping drivers achieve the ideal spacing away from the steering wheel.

Storage Trunk

The rear cargo trunk is great for keeping your personal possessions neatly arranged. Featuring plenty of inner room, it can comfortably store outdoor equipment, apparel and other daily necessities. You can place and retrieve articles with great ease, which makes transporting all your required belongings totally trouble free.

Wireless Charging

Its most remarkable benefit is the great ease of use it brings. Thanks to wireless charging, both drivers and passengers are freed from the trouble of handling messy charging cords. Users just need to set their compatible devices down on the onboard wireless charging pad, generally positioned at handy spots including the center console or dashboard. This effortless workflow starts charging right away with no plug in steps required, which turns out extremely practical for quick get on and get off scenarios.

Key

This vehicle supports ignition control via NFC key and Bluetooth key, with two NFC keys supplied as standard factory equipment. Here is how to operate the NFC key: Bring the NFC key close to the NFC sensing zone; the vehicle will power up and play an audio startup alert through Bluetooth.

For Bluetooth key operation: Keep a paired Bluetooth enabled device, for instance a smartphone or smart wristband, on your person and walk toward the vehicle. Press the start button to ignite the cart, and you will hear the corresponding startup tone.

Sound Bar

Boost your amusement during rides with our space efficient audio unit. Tailored for a flawless installation, this system outputs vivid, powerful audio with the soundbar and auxiliary speakers. You are able to wirelessly play your beloved music from a wide range of compatible devices for a fluid, cable untangled experience. What’s more, it provides customizable lighting presets that rhythmically flash along with music beats.
